RoHS
RoHS compliant
RoHS compliantPackage Metal
Category Switches / Pushbutton Switches
Description

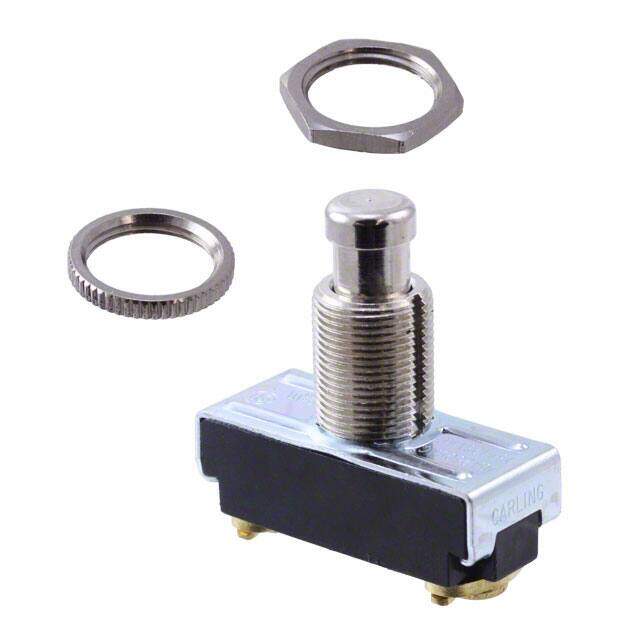

CARLING TECHNOLOGIES172SWITCH, PUSHBUTTON, SPST, 15A, 250V
PDF
/
Buying Options
Total Price: USD $11.84
Unit Price: USD $11.836
≥1 USD $11.836
≥10 USD $10.75272
≥100 USD $10.634976
Inventory: 1022
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Radiation Hardening No
Dimensions
Width 14.6mm
Length 35.1mm
Technical
Contact Voltage Rating (AC) 250V
Actuator Diameter 8.763 mm
Contact Function OFF-(ON)
Hole Diameter 12.7 mm
Contact Current Rating 15A
Mechanical Life 100,000 Cycles
Throw Configuration SPST
Number of Poles 1
Electrical Life 25,000 Cycles
Max Voltage Rating (AC) 250V
Color - Actuator/Cap Silver
Insulation Resistance 100MOhm
Panel Cutout Dimensions Circular - 12.70mm Dia
Switch Function Off-Mom
Circuit SPST-NO
Actuator Type Round, Button
Approval Agency CSA, UL
Voltage - Rated AC 125V
Termination Style Screw Terminal
Current Rating 15A
Orientation Vertical
Current Rating (Amps) 15A AC
HTS Code 8536.50.70.00
Voltage - Rated 250V
Gender Male
Number of Positions 2
Type Standard
ECCN Code EAR99
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series 172
Packaging Bulk
Operating Temperature 0°C~85°C
Physical
Package / Case Metal
Mounting Type Panel Mount, Rear
Mount Panel
Contact Plating Nickel
Supply Chain
Factory Lead Time 6 Weeks
