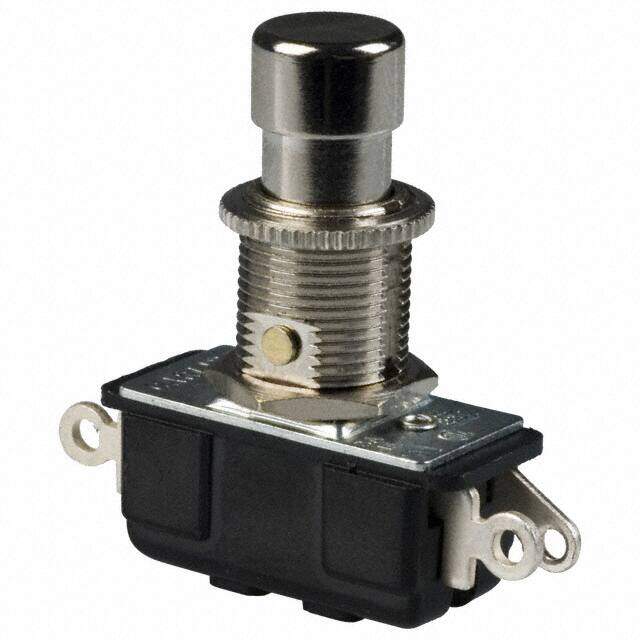

112-P
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON SPDT 3A 125V
PDF
/
Inventory: 3168
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Actuator Length 11.09mm
Body Height 13.76mm
Width 13.3mm
Length 30mm
Technical
Actuator Finish NICKEL
Operating Force-Max 35.59 N
Body Color BLACK
Contact Function ON-OFF
Contact (DC) Max Rating R Load 3A@125VDC
Hole Diameter 12.7 mm
Contact Timing QUICK-MAKE/-BREAK
Contact (AC) Max Rating R Load 3A@125VAC
Contact Current(AC)-Max 3A
Illumination Type Illuminated
Contact Current Rating 1A
Mechanical Life 100,000 Cycles
Max Voltage Rating (DC) 250V
Throw Configuration SPDT, SPST
Electrical Life 25,000 Cycles
Dielectric Withstanding Voltage 1000VAC V
Max Voltage Rating (AC) 250V
Contact Current(DC)-Max 3A
Color - Actuator/Cap Silver
Insulation Resistance 100000000Ohm
Panel Cutout Dimensions Circular - 12.70mm Dia
Switch Function On-On
Circuit SPDT
Actuator Type Round, Button
Body Breadth 13.31 mm
Voltage - Rated AC 125V
Termination Style Solder Lug
Current Rating 3A
Orientation Straight
Current Rating (Amps) 3A AC
HTS Code 8536.50.90.33
Type Standard
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series 110
Packaging Bulk
Operating Temperature 0°C~85°C
Physical
Actuator Material BRASS
Housing Material Resin
Mounting Type Panel Mount, Rear
Mount Panel
Supply Chain
Factory Lead Time 6 Weeks
