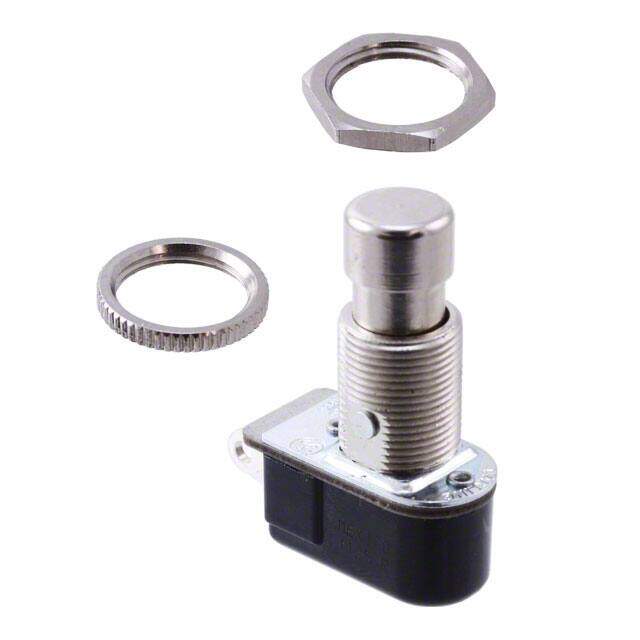

110-P
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON SPST 6A 125V
PDF
/
Buying Options
Total Price: USD $15.81
Unit Price: USD $15.8136
≥1 USD $15.8136
≥10 USD $14.17592
≥100 USD $13.553056
≥500 USD $12.852048
≥1000 USD $12.38468
≥3000 USD $11.605757
Inventory: 287
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Actuator Length 11.09mm
Width 13.3mm
Length 30mm
Technical
Actuator Finish NICKEL
Contact Voltage Rating (AC) 250V
Operating Force-Max 35.59 N
Actuator Diameter 10.31 mm
Contact Function ON-OFF
Hole Diameter 12.7 mm
Contact Timing QUICK-MAKE/-BREAK
Contact Current(AC)-Max 6A
Contact Current Rating 6A
Mechanical Life 100,000 Cycles
Max Voltage Rating (DC) 250V
Throw Configuration SPDT, SPST
Number of Poles 1
Electrical Life 25,000 Cycles
Max Voltage Rating (AC) 250V
Contact Current(DC)-Max 6A
Color - Actuator/Cap Silver
Panel Cutout Dimensions Circular - 12.70mm Dia
Switch Function Off-On
Circuit SPST
Actuator Type Round, Button
Voltage - Rated AC 125V
Termination Style Solder Lug
Current Rating 6A
Orientation Straight
Current Rating (Amps) 6A AC
HTS Code 8536.50.90.35
Voltage - Rated 250V
Type Standard
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series 110
Packaging Bulk
Operating Temperature 0°C~85°C
Physical
Housing Material Resin
Mounting Type Panel Mount, Rear
Mount Bushing, Panel
Supply Chain
Factory Lead Time 6 Weeks
