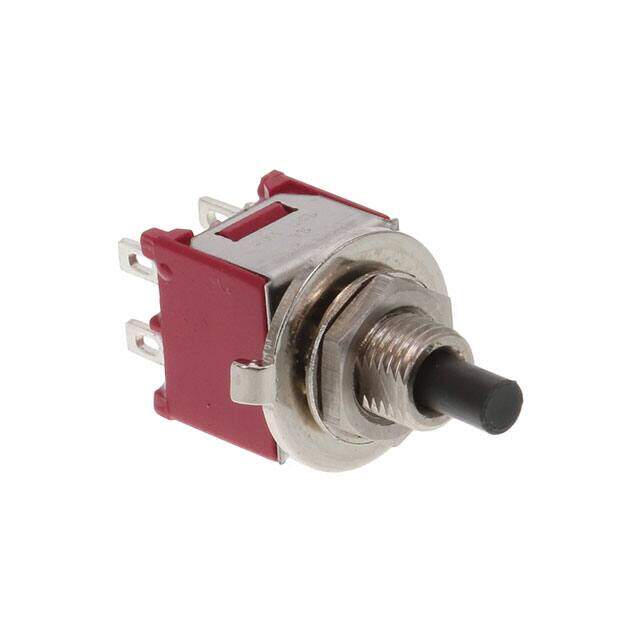

TP21SHZGE
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
Pushbutton Switches Pushbutton
PDF
/
Buying Options
Total Price: USD $11.44
Unit Price: USD $11.44
≥1 USD $11.44
≥10 USD $10.25904
≥100 USD $9.924288
Inventory: 65
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Material Silver
Contact Plating Gold, Silver
Mount Bushing, Panel
Mounting Type Panel Mount, Rear
Housing Material Stainless Steel
Actuator Material Polyester, Thermoplastic
Technical
Operating Temperature -30°C~85°C
Packaging Tray
Published 2011
Series TP
Feature Epoxy Sealed Terminals
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Type Standard
Power Rating 400mW
Voltage - Rated DC 28V
Current Rating (Amps) 1A AC/DC
Orientation Straight
Depth 9.14mm
Current Rating 1A
Termination Style Solder Lug
Voltage - Rated AC 120V
Actuator Type Round, Plunger
Circuit DPST-NO
Switch Function Off-Mom
Panel Cutout Dimensions Circular - 4.95mm Dia
Color - Actuator/Cap Black
Max Voltage Rating (AC) 120V
Max Current Rating 1A
Electrical Life 60,000 Cycles
Throw Configuration DPST
Max Voltage Rating (DC) 28V
Dimensions
Length 8.13mm
Actuator Length 3.94mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
