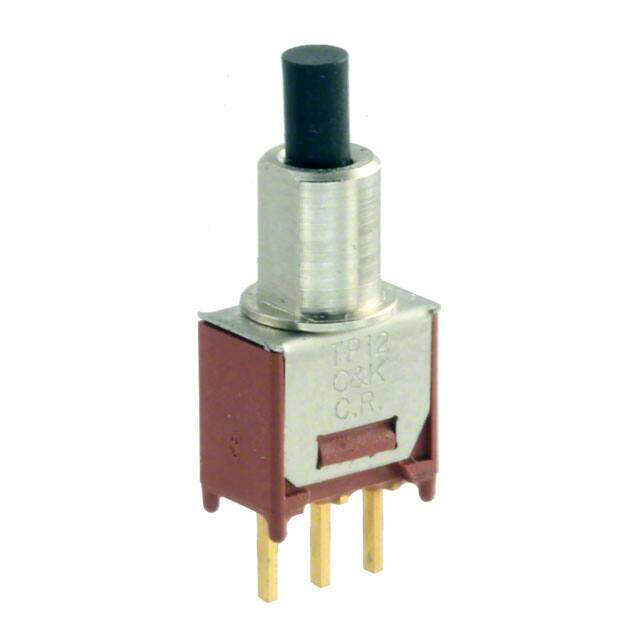

TP12SH9CBE
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPDT 0.4VA 20V
PDF
/
Buying Options
Total Price: USD $7.24
Unit Price: USD $7.2424
≥1 USD $7.2424
≥10 USD $6.54192
≥100 USD $6.22688
≥500 USD $6.158944
Inventory: 1137
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Actuator Length 3.94mm
Length 8.13mm
Technical
Max Voltage Rating (DC) 20V
Electrical Life 30,000 Cycles
Max Voltage Rating (AC) 20V
Color - Actuator/Cap Black
Switch Function On-Mom
Circuit SPDT
Actuator Type Round, Plunger
Voltage - Rated AC 20V
Termination Style PC Pin
Depth 6.1mm
Orientation Straight
Current Rating (Amps) 0.4VA AC/DC
Voltage - Rated DC 20V
Power Rating 400mW
Type Standard
Termination PC Pins
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Epoxy Sealed Terminals
Series TP
Published 2006
Packaging Bulk
Operating Temperature -30°C~85°C
Physical
Actuator Material Polyester, Thermoplastic
Housing Material Stainless Steel
Mounting Type Through Hole
Mount Through Hole
Contact Plating Gold
Supply Chain
Factory Lead Time 12 Weeks
