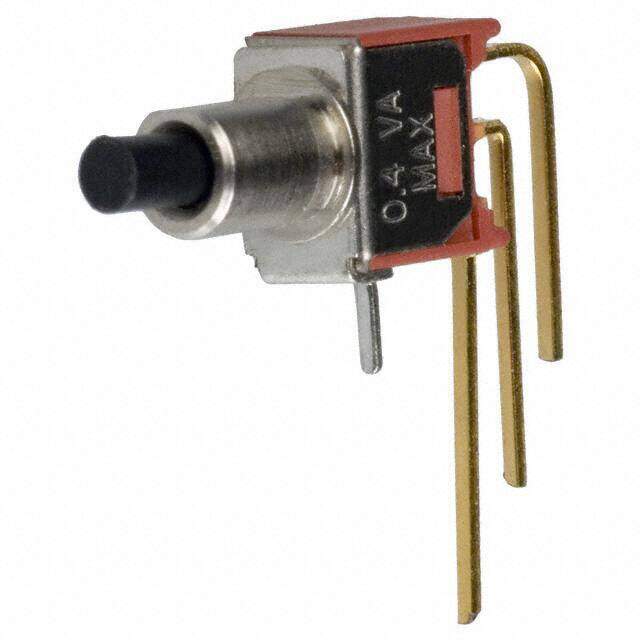

TP12SH9AVBE
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPDT 0.4VA 20V
PDF
/
Buying Options
Total Price: USD $11.84
Unit Price: USD $11.8448
≥1 USD $11.8448
≥10 USD $10.69992
≥100 USD $10.185472
≥500 USD $9.67032
≥1000 USD $9.327014
≥3000 USD $8.754794
Inventory: 303
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Actuator Length 3.94mm
Length 6.1mm
Technical
Max Voltage Rating (DC) 20V
Number of Poles 1
Electrical Life 30,000 Cycles
Max Voltage Rating (AC) 20V
Color - Actuator/Cap Black
Switch Function On-Mom
Circuit SPDT
Actuator Type Round, Plunger
Approval Agency UL
Voltage - Rated AC 20V
Termination Style PC Pin
Current Rating 1A
Depth 23.4mm
Current Rating (Amps) 0.4VA AC/DC
Voltage - Rated DC 20V
Power Rating 400mW
Number of Positions 2
Type Standard
Termination PC Pins
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Epoxy Sealed Terminals
Series TP
Published 2006
Packaging Tray
Operating Temperature -30°C~85°C
Physical
Actuator Material Polyester, Thermoplastic
Housing Material Stainless Steel
Mounting Type Through Hole, Right Angle, Vertical
Mount Through Hole, Vertical
Contact Material Gold
Supply Chain
Factory Lead Time 12 Weeks
