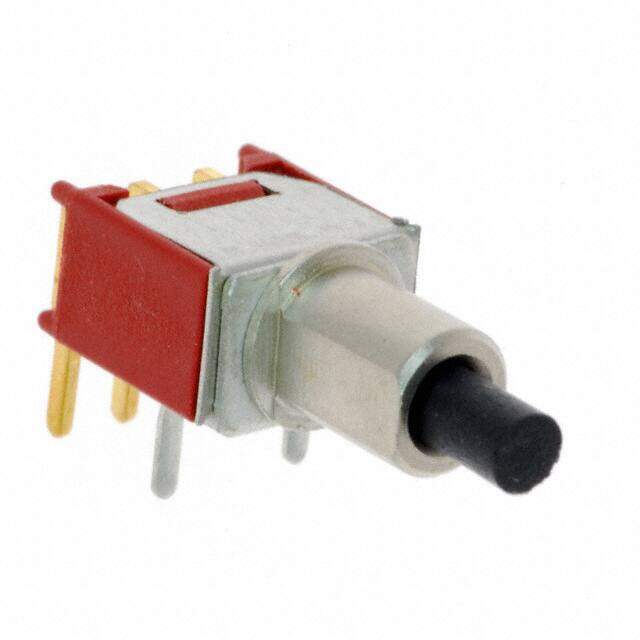

TP12SH9ABE
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
Switch; P/B; Sealed; SPDT; OFF-MOM; .155" Round Plunger; 0.4A; 20VAC/DC; R/A PC ThruHole
PDF
/
Buying Options
Total Price: USD $7.98
Unit Price: USD $7.9816
≥1 USD $7.9816
≥10 USD $7.21248
≥100 USD $6.865408
≥500 USD $6.790256
Inventory: 1091
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Material Gold
Mount PCB, Through Hole
Mounting Type Through Hole, Right Angle
Housing Material Stainless Steel
Actuator Material Polyester, Thermoplastic
Technical
Operating Temperature -30°C~85°C
Packaging Bulk
Published 2006
Series TP
Feature Epoxy Sealed Terminals
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pins
Type Standard
Number of Positions 2
Power Rating 400mW
Voltage - Rated DC 20V
Current Rating (Amps) 0.4VA AC/DC
Orientation Right Angle
Current Rating 20mA
Termination Style PC Pin
Voltage - Rated AC 20V
Approval Agency UL
Actuator Type Round, Plunger
Circuit SPDT
Switch Function On-Mom
Color - Actuator/Cap Black
Max Voltage Rating (AC) 20V
Electrical Life 30,000 Cycles
Number of Poles 1
Max Voltage Rating (DC) 20V
Dimensions
Length 8.13mm
Actuator Length 3.94mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
