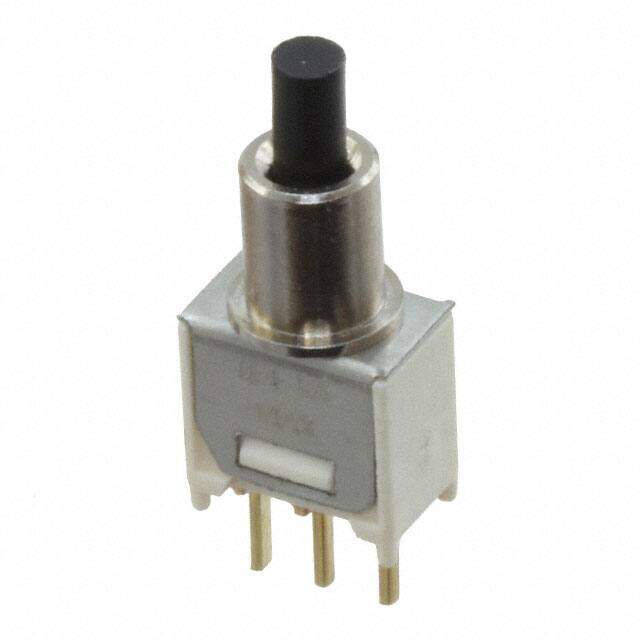

TP12SH8CBE
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
Pushbutton Switch, Straight, Spdt, On-(On), Pc Tail Terminal, Pcb Hole Count: 3
PDF
/
Buying Options
Total Price: USD $10.42
Unit Price: USD $10.41543
≥1 USD $10.41543
≥10 USD $9.82588
≥100 USD $9.2697
≥500 USD $8.745
≥1000 USD $8.25
≥3000 USD $7.78302
Inventory: 1610
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Plating Gold
Mount Through Hole
Mounting Type Through Hole
Material Glass, Nylon
Housing Material Stainless Steel
Actuator Material Polyester, Thermoplastic
Technical
Operating Temperature -30°C~85°C
Packaging Tray
Published 2006
Series TP
Feature Epoxy Sealed Terminals
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pins
Type Standard
Power Rating 400mW
Voltage - Rated DC 20V
Current Rating (Amps) 0.4VA AC/DC
Orientation Straight
Depth 6.1mm
Termination Style PC Pin
Voltage - Rated AC 20V
Actuator Type Round, Plunger
Circuit SPDT
Switch Function On-Mom
Color - Actuator/Cap Black
Max Voltage Rating (AC) 20V
Electrical Life 30,000 Cycles
Max Voltage Rating (DC) 20V
Dimensions
Height 8.13mm
Length 14.23mm
Width 5.08mm
Actuator Length 3.94mm
Compliance
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
