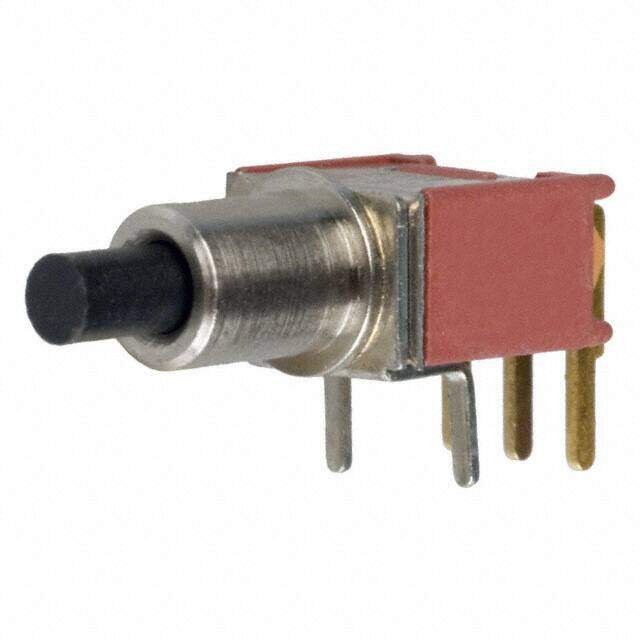

TP12SH8AGE
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON SPDT 1A 120V
PDF
/
Buying Options
Total Price: USD $5.97
Unit Price: USD $5.973695
≥1 USD $5.973695
≥200 USD $2.312017
≥500 USD $2.230617
≥1000 USD $2.19123
Inventory: 1604
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Actuator Length 3.94mm
Length 8.13mm
Technical
Max Voltage Rating (DC) 28V
Electrical Life 30,000 Cycles
Max Current Rating 1A
Max Voltage Rating (AC) 120V
Color - Actuator/Cap Black
Switch Function On-Mom
Circuit SPDT
Actuator Type Round, Plunger
Voltage - Rated AC 20V
Termination Style PC Pin
Orientation Right Angle
Current Rating (Amps) 1A AC/DC
Voltage - Rated DC 28V
Type Standard
Termination PC Pins
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Epoxy Sealed Terminals
Series TP
Published 2006
Packaging Bulk
Operating Temperature -30°C~85°C
Physical
Actuator Material Polyester, Thermoplastic
Housing Material Stainless Steel
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Plating Gold
Contact Material Silver
Supply Chain
Factory Lead Time 12 Weeks
