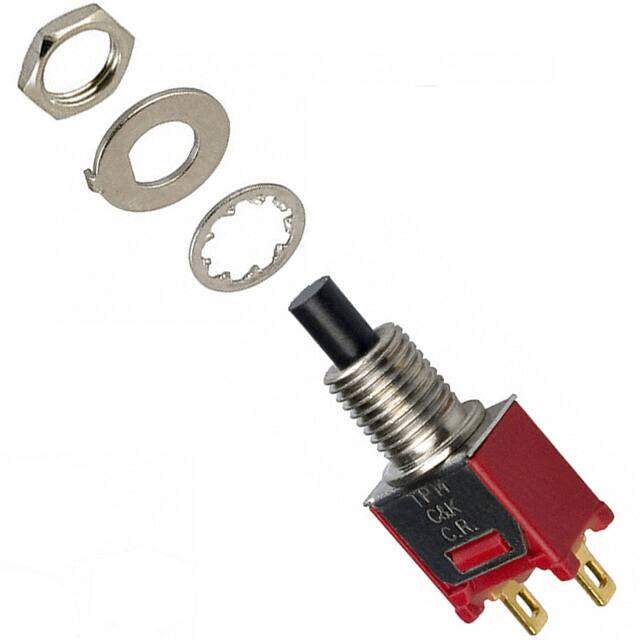

TP11SHZBE
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPST-NO 0.4VA 20V
PDF
/
Buying Options
Total Price: USD $7.96
Unit Price: USD $7.964
≥1 USD $7.964
≥10 USD $7.15616
≥100 USD $6.825984
≥500 USD $6.532416
≥1000 USD $6.275456
≥3000 USD $5.945174
Inventory: 1086
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Plating Gold
Mount Panel
Mounting Type Panel Mount, Rear
Housing Material Stainless Steel
Actuator Material Polyester, Thermoplastic
Technical
Operating Temperature -30°C~85°C
Packaging Bulk
Published 2006
Series TP
Feature Epoxy Sealed Terminals
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Type Standard
Power Rating 400mW
Voltage - Rated DC 20V
Current Rating (Amps) 0.4VA AC/DC
Orientation Straight
Depth 6.1mm
Termination Style Solder Lug
Voltage - Rated AC 20V
Actuator Type Round, Plunger
Circuit SPST-NO
Switch Function Off-Mom
Panel Cutout Dimensions Circular - 4.95mm Dia
Color - Actuator/Cap Black
Max Voltage Rating (AC) 20V
Electrical Life 60,000 Cycles
Throw Configuration SPST
Max Voltage Rating (DC) 20V
Dimensions
Length 8.13mm
Actuator Length 3.94mm
Compliance
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
