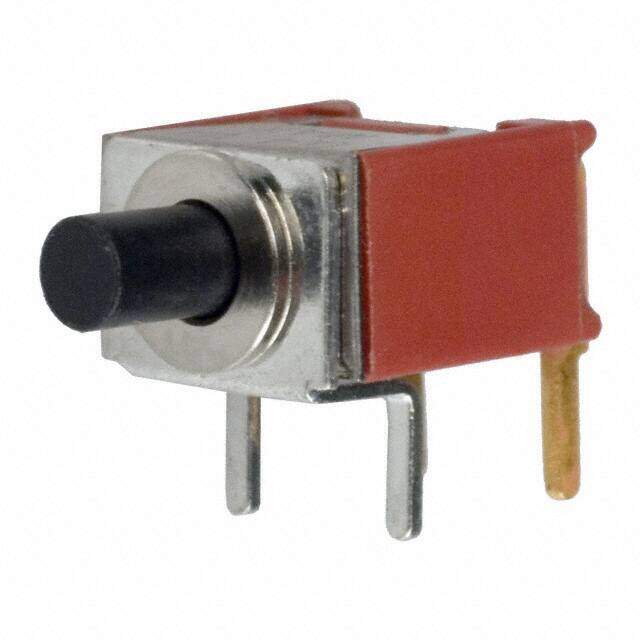

TP11MS9ABE
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPST-NO 0.4VA 20V
PDF
/
Buying Options
Total Price: USD $4.44
Unit Price: USD $4.444
≥1 USD $4.444
≥10 USD $4.00136
≥100 USD $3.800192
≥500 USD $3.639152
≥1000 USD $3.5398
Inventory: 1594
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Plating Gold
Mount Through Hole
Mounting Type Through Hole, Right Angle
Actuator Material Polyester, Thermoplastic
Housing Material Stainless Steel
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Actuator Length 3.3mm
Length 8.13mm
Technical
Max Voltage Rating (DC) 20V
Throw Configuration SPST
Electrical Life 60,000 Cycles
Max Voltage Rating (AC) 20V
Color - Actuator/Cap Black
Switch Function Off-Mom
Circuit SPST-NO
Actuator Type Round, Plunger
Voltage - Rated AC 20V
Termination Style PC Pin
Orientation Right Angle
Current Rating (Amps) 0.4VA AC/DC
Voltage - Rated DC 20V
Power Rating 400mW
Type Standard
Termination PC Pins
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Epoxy Sealed Terminals
Series TP
Published 2006
Packaging Bulk
Operating Temperature -30°C~85°C
