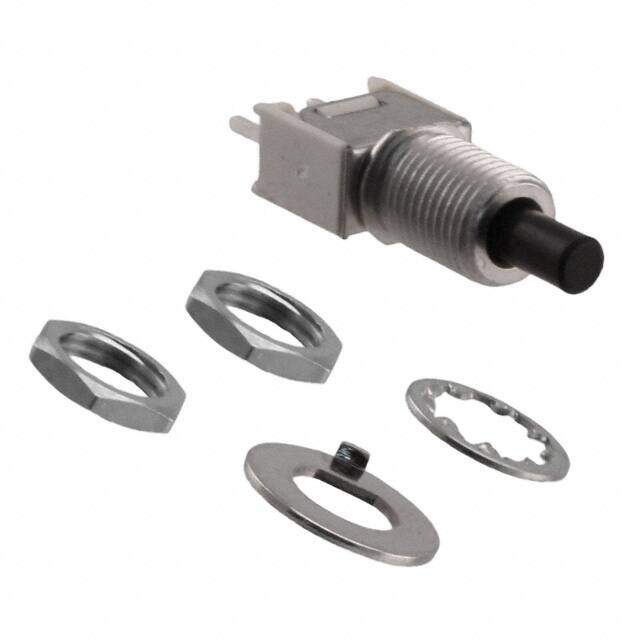

TP11LTCQE image
Favorite
TP11LTCQE image
Favorite

TP11LTCQE

C&K
RoHS
RoHS RoHS compliant
Package /
Category Switches / Pushbutton Switches
Description Switch Push Button N.O. SPST Plunger 1A 120VAC 28VDC PC Pins Thru-Hole
PDF
/
Buying Options
Total Price: USD $6.54
Unit Price: USD $6.5384
≥1 USD $6.5384
≥10 USD $5.89248
≥100 USD $5.64608
≥500 USD $5.431712
Inventory: 693
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 12 Weeks

Physical

Contact Material Silver
Mount Panel, Through Hole
Mounting Type Panel Mount, Rear
Housing Material Stainless Steel
Actuator Material Polyester, Thermoplastic

Technical

Operating Temperature -30°C~85°C
Packaging Bulk
Published 2006
Series TP
Feature Epoxy Sealed Terminals
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pins
Type Standard
Voltage - Rated DC 28V
Current Rating (Amps) 1A AC/DC
Orientation Straight
Depth 7.11mm
Current Rating 1A
Termination Style PC Pin
Voltage - Rated AC 120V
Actuator Type Round, Plunger
Circuit SPST-NO
Switch Function Off-Mom
Panel Cutout Dimensions Circular - 6.35mm Dia
Color - Actuator/Cap Black
Max Voltage Rating (AC) 120V
Max Current Rating 1A
Electrical Life 60,000 Cycles
Throw Configuration SPST
Max Voltage Rating (DC) 28V
Contact Current Rating 1A

Dimensions

Length 8.13mm
Actuator Length 5.46mm

Compliance

RoHS Status ROHS3 Compliant
Lead Free Lead Free
