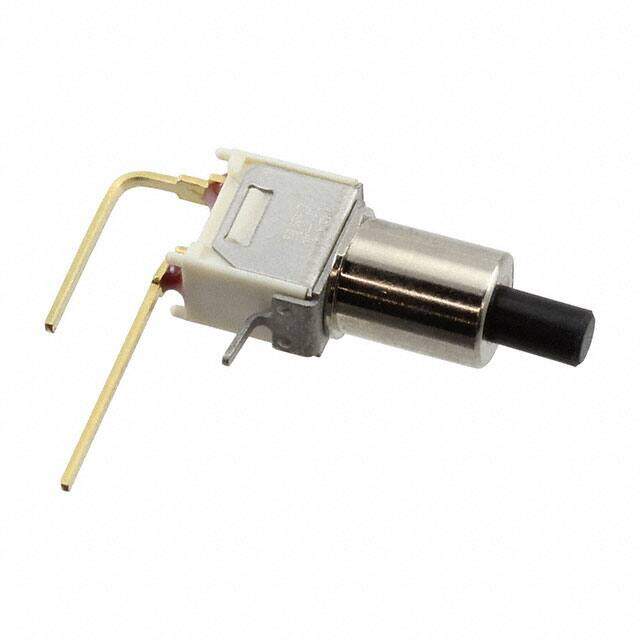

TP11LT9AVBE

C&K
RoHS
RoHS RoHS compliant
Package /
Category Switches / Pushbutton Switches
Description Pushbutton Switches Pushbutton
PDF
/
Inventory: 5949
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 12 Weeks

Physical

Contact Plating Gold
Mount Bushing, Through Hole, Vertical
Mounting Type Through Hole, Right Angle, Vertical
Housing Material Stainless Steel
Actuator Material Polyester, Thermoplastic

Technical

Operating Temperature -30°C~85°C
Packaging Tray
Published 2006
Series TP
Feature Epoxy Sealed Terminals
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pins
Type Standard
Power Rating 400mW
Voltage - Rated DC 20V
Current Rating (Amps) 0.4VA AC/DC
Depth 27.61mm
Termination Style PC Pin
Voltage - Rated AC 20V
Actuator Type Round, Plunger
Circuit SPST-NO
Switch Function Off-Mom
Color - Actuator/Cap Black
Max Voltage Rating (AC) 20V
Electrical Life 60,000 Cycles
Throw Configuration SPST
Max Voltage Rating (DC) 20V

Dimensions

Length 7.11mm
Actuator Length 5.46mm

Compliance

RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
