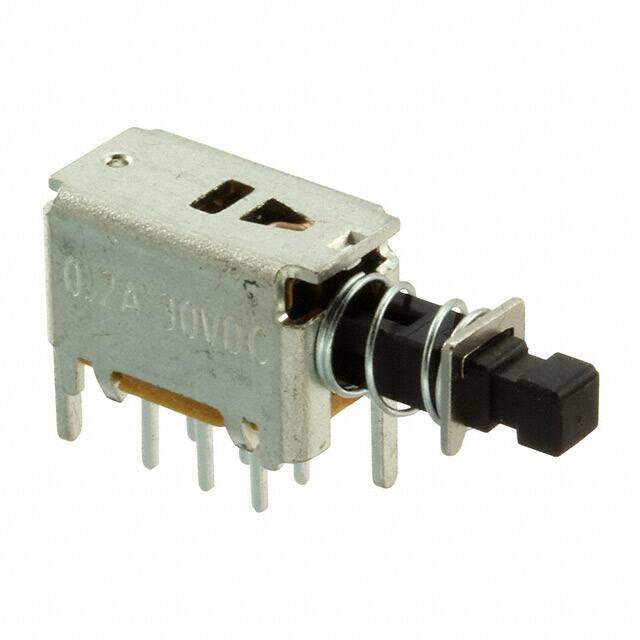

PN21SDSA03QE
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
Switch Push Button DPDT Square Plunger 0.2A 30VDC Momentary Contact PC Pins Thru-Hole Tray/Bag
PDF
/
Buying Options
Total Price: USD $1.16
Unit Price: USD $1.1616
≥1 USD $1.1616
≥10 USD $1.04016
≥100 USD $0.983136
≥500 USD $0.936197
≥1000 USD $0.893895
≥3000 USD $0.856275
Inventory: 1160
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Actuator Length 4.3mm
Length 6.8mm
Technical
Mechanical Life 10,000 Cycles
Max Voltage Rating (DC) 30V
Throw Configuration DPDT
Electrical Life 10,000 Cycles
Max Current Rating 200mA
Color - Actuator/Cap Black
Contact Resistance 50mOhm
Switch Function On-Mom
Circuit DPDT
Actuator Type Plunger for Cap
Termination Style PC Pin
Current Rating 200mA
Depth 22mm
Orientation Right Angle
Current Rating (Amps) 200mA DC
Voltage - Rated DC 30V
Min Operating Temperature -10°C
Max Operating Temperature 60°C
Type Standard
Termination PC Pins
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Epoxy Sealed Terminals
Series PN
Published 2010
Packaging Bulk
Operating Temperature -10°C~60°C
Physical
Actuator Material Polyacetal
Housing Material Phenolic
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Plating Silver
Contact Material Bronze
Supply Chain
Factory Lead Time 13 Weeks
