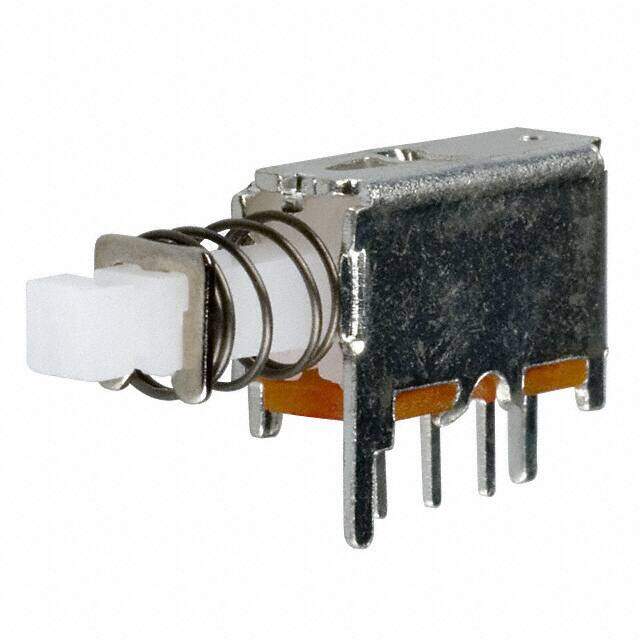

PN11SHNA03QE
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPDT 0.2A 30V
PDF
/
Buying Options
Total Price: USD $1.44
Unit Price: USD $1.4432
≥1 USD $1.4432
≥10 USD $1.29624
≥100 USD $1.226368
≥500 USD $1.168385
≥1000 USD $1.116025
≥3000 USD $1.063735
Inventory: 1117
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Contact Material Bronze
Contact Plating Silver
Mount Through Hole
Mounting Type Through Hole, Right Angle
Housing Material Phenolic
Actuator Material Polyacetal
Technical
Operating Temperature -10°C~60°C
Packaging Bulk
Published 2010
Series PN
Feature Epoxy Sealed Terminals
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pins
Type Standard
Voltage - Rated DC 30V
Current Rating (Amps) 200mA DC
Orientation Right Angle
Depth 22mm
Current Rating 200mA
Termination Style PC Pin
Actuator Type Plunger for Cap
Circuit SPDT
Switch Function On-Mom
Contact Resistance 50mOhm
Color - Actuator/Cap Black
Max Current Rating 200mA
Electrical Life 10,000 Cycles
Max Voltage Rating (DC) 30V
Mechanical Life 10,000 Cycles
Contact Current Rating 200mA
Illumination Type Illuminated
Dimensions
Length 5.3mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
