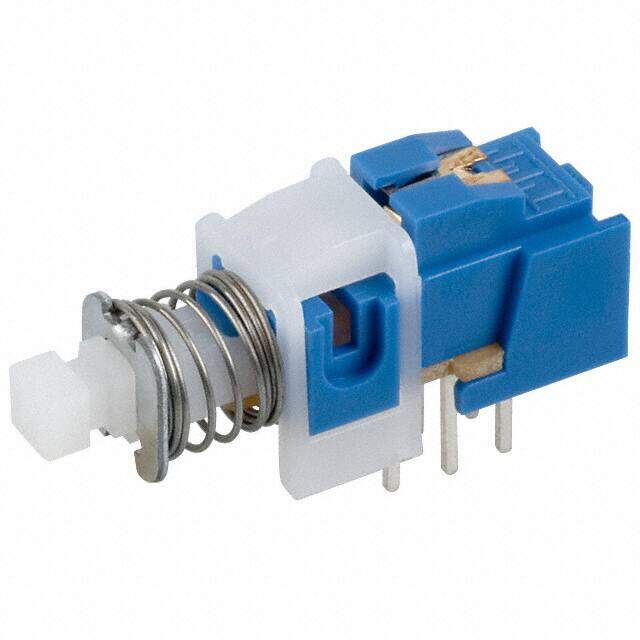

PHA2UEE
RoHS
/
Package /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH DPDT 0.1A 30V
PDF
/
Buying Options
Total Price: USD $2.03
Unit Price: USD $2.028431
≥1 USD $2.028431
≥200 USD $0.810059
≥600 USD $0.782488
≥1200 USD $0.769359
Inventory: 6698
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Actuator Length 4mm
Width 7.4mm
Length 7.4mm
Technical
Illumination Type Illuminated
Contact Current Rating 100mA
Max Voltage Rating (DC) 30V
Throw Configuration DPDT
Electrical Life 10,000 Cycles
Max Current Rating 100mA
Color - Actuator/Cap White
Contact Resistance 20mOhm
Switch Function On-On
Circuit DPDT
Actuator Type Plunger for Cap
Termination Style PC Pin
Current Rating 100mA
Depth 26mm
Orientation Right Angle
Current Rating (Amps) 100mA DC
Voltage - Rated DC 30V
Type Standard
Termination PC Pins
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature Epoxy Sealed Terminals
Series PHA
Published 2003
Packaging Bulk
Operating Temperature -10°C~60°C
Physical
Actuator Material Polyoxymethylene
Housing Material Phenolic
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Plating Silver
Contact Material Bronze
