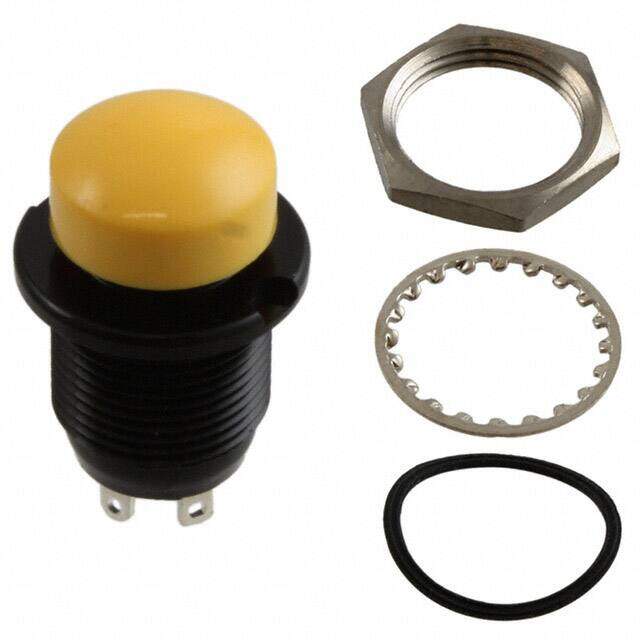

NP8S5L203QE
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON SPDT 5A 32V
PDF
/
Buying Options
Total Price: USD $19.14
Unit Price: USD $19.14
≥1 USD $19.14
Inventory: 24
Minimum: 1
-
+
Technical Details
Compliance
Ratings Dust Tight, IP68, Waterproof
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Length 15.75mm
Technical
Contact Current Rating 5A
Mechanical Life 1,000,000 Cycles
Max Voltage Rating (DC) 32V
Throw Configuration SPDT
Electrical Life 25,000 Cycles
Color - Actuator/Cap Yellow
Panel Cutout Dimensions Circular - 12.30mm Dia
Switch Function On-Mom
Circuit SPDT
Actuator Type Round, Button, Domed
Termination Style Solder Lug
Current Rating 5A
Depth 15.75mm
Ingress Protection IP68 - Dust Tight, Waterproof
Current Rating (Amps) 5A DC
Voltage - Rated DC 32V
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Type Standard
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Epoxy Sealed Terminals
Series NP
Published 2012
Packaging Bulk
Operating Temperature -40°C~85°C
Physical
Actuator Material Polybutylene
Mounting Type Panel Mount, Front
Mount Front, Panel
Contact Plating Silver
Supply Chain
Factory Lead Time 12 Weeks
