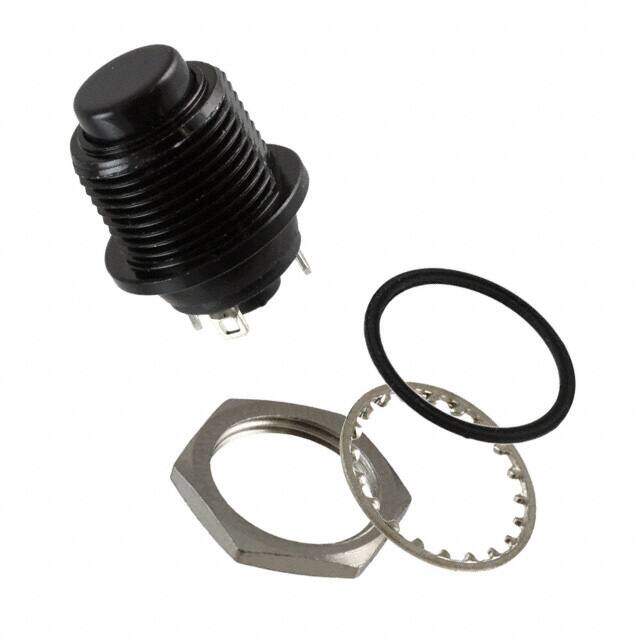

NP8S2R203QE
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON SPDT 5A 32V
PDF
/
Buying Options
Total Price: USD $25.63
Unit Price: USD $25.6256
≥1 USD $25.6256
≥10 USD $23.27248
≥100 USD $21.0496
≥500 USD $20.26508
≥1000 USD $18.957655
≥3000 USD $16.181
Inventory: 169
Minimum: 1
-
+
Technical Details
Compliance
Ratings Dust Tight, IP68, Waterproof
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Length 14.3mm
Technical
Mechanical Life 1,000,000 Cycles
Max Voltage Rating (DC) 32V
Electrical Life 25,000 Cycles
Color - Actuator/Cap Black
Panel Cutout Dimensions Circular - 12.30mm Dia
Switch Function On-Mom
Circuit SPDT
Actuator Type Round, Button
Termination Style Solder Lug
Current Rating 5A
Depth 14.3mm
Ingress Protection IP68 - Dust Tight, Waterproof
Current Rating (Amps) 5A DC
Voltage - Rated DC 32V
Type Standard
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Epoxy Sealed Terminals
Series NP
Published 2012
Packaging Bulk
Operating Temperature -40°C~85°C
Physical
Actuator Material Polybutylene
Housing Material Aluminium
Mounting Type Panel Mount, Rear
Mount Bushing, Panel
Contact Plating Silver
Supply Chain
Factory Lead Time 12 Weeks
