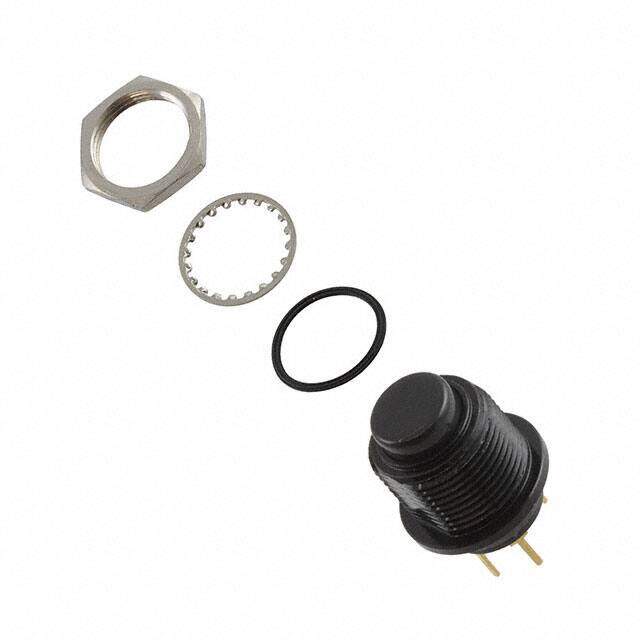

NP8S2R202GE
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPDT 0.01A 5V
PDF
/
Buying Options
Total Price: USD $29.44
Unit Price: USD $29.4448
≥1 USD $29.4448
≥10 USD $26.79688
≥100 USD $23.837
≥500 USD $22.90222
≥1000 USD $21.344303
Inventory: 132
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Plating Gold, Silver
Mount Bushing, Panel, Through Hole
Mounting Type Panel Mount, Rear
Housing Material Aluminium
Actuator Material Polybutylene
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Published 2012
Series NP
Feature Epoxy Sealed Terminals
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pins
Type Standard
Voltage - Rated DC 5V
Current Rating (Amps) 10mA DC
Ingress Protection IP68 - Dust Tight, Waterproof
Depth 14.3mm
Current Rating 10mA
Termination Style PC Pin
Actuator Type Round, Button
Circuit SPDT
Switch Function On-Mom
Panel Cutout Dimensions Circular - 12.30mm Dia
Color - Actuator/Cap Black
Max Current Rating 10mA
Electrical Life 1,000,000 Cycles
Max Voltage Rating (DC) 5V
Mechanical Life 1,000,000 Cycles
Contact Current Rating 10mA
Dimensions
Length 14.3mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
Ratings Dust Tight, IP68, Waterproof
