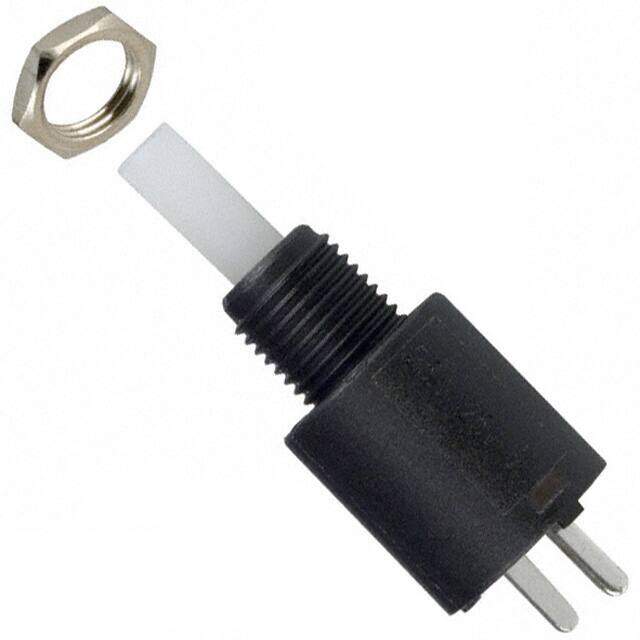

KM1101RR02Q
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPST-NO 0.25A 125V
PDF
/
Buying Options
Total Price: USD $4.08
Unit Price: USD $4.0832
≥1 USD $4.0832
≥10 USD $3.64496
≥100 USD $3.451008
≥500 USD $3.327808
Inventory: 85
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Actuator Length 7.62mm
Length 9.86mm
Technical
Max Voltage Rating (DC) 125V
Throw Configuration SPDT, SPST
Electrical Life 10,000 Cycles
Max Voltage Rating (AC) 125V
Color - Actuator/Cap White
Panel Cutout Dimensions Circular - 6.35mm Dia
Switch Function Off-Mom
Circuit SPST-NO
Actuator Type Plunger for Cap
Voltage - Rated AC 125V
Termination Style PC Pin
Current Rating 250mA
Depth 9.86mm
Orientation Straight
Current Rating (Amps) 250mA AC/DC
Voltage - Rated DC 125V
Type Standard
Termination PC Pins
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series KM
Published 2012
Packaging Bulk
Operating Temperature -30°C~85°C
Physical
Actuator Material Nylon
Mounting Type Panel Mount, Rear
Mount Panel, Through Hole
Contact Plating Silver
Contact Material Bronze, Copper
Supply Chain
Factory Lead Time 16 Weeks
