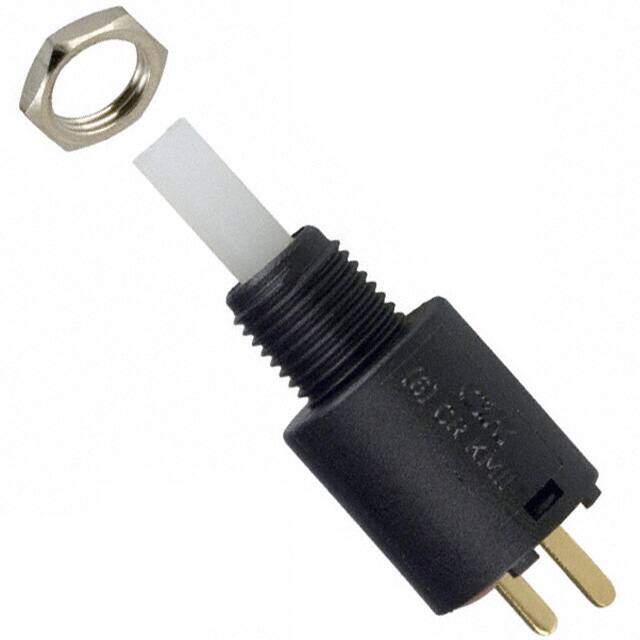

KM1101RR02B
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPST-NO 0.4VA 20V
PDF
/
Buying Options
Total Price: USD $4.28
Unit Price: USD $4.2768
≥1 USD $4.2768
≥10 USD $3.8192
≥100 USD $3.616448
≥500 USD $3.487264
Inventory: 118
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Contact Material Bronze, Copper
Contact Plating Gold
Mount Panel, Through Hole
Mounting Type Panel Mount, Rear
Actuator Material Nylon
Technical
Operating Temperature -30°C~85°C
Packaging Bulk
Published 2011
Series KM
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pins
Type Standard
Voltage - Rated DC 20V
Current Rating (Amps) 0.4VA AC/DC
Orientation Straight
Depth 9.86mm
Current Rating 250mA
Termination Style PC Pin
Voltage - Rated AC 20V
Actuator Type Plunger for Cap
Circuit SPST-NO
Switch Function Off-Mom
Panel Cutout Dimensions Circular - 6.35mm Dia
Color - Actuator/Cap White
Max Voltage Rating (AC) 20V
Electrical Life 10,000 Cycles
Throw Configuration SPST
Max Voltage Rating (DC) 20V
Dimensions
Length 9.86mm
Actuator Length 7.62mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
