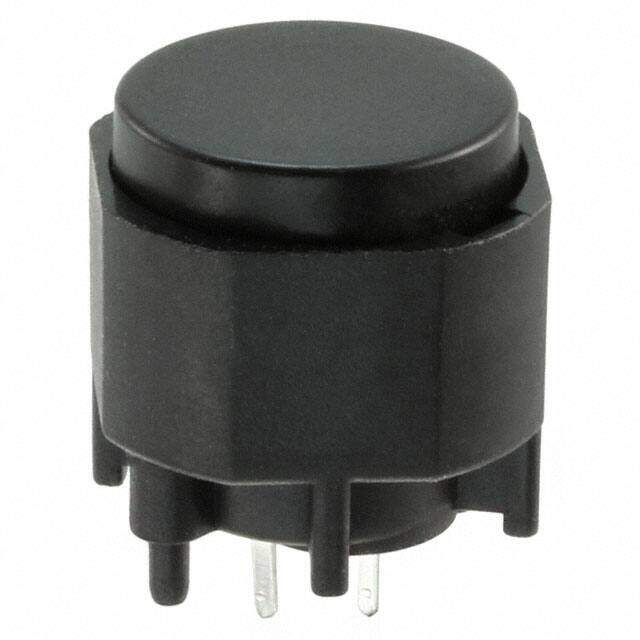

K12ABK15N
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
Switch Key N.O. SPST 0.1A 30VDC 3VA 5N PC Pins Thru-Hole Bulk
PDF
/
Buying Options
Total Price: USD $3.48
Unit Price: USD $3.4848
≥1 USD $3.4848
≥10 USD $3.13632
≥100 USD $2.97968
≥500 USD $2.854192
≥1000 USD $2.761
Inventory: 44992
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Actuator Length 2mm
Technical
Illumination Type Illuminated
Operating Force 5 N
Contact Current Rating 100mA
Max Voltage Rating (DC) 30V
Throw Configuration SPST
Electrical Life 1,000,000 Cycles
Max Current Rating 100mA
Color - Actuator/Cap Black
Row Spacing 200 μm
Contact Resistance 50mOhm
Switch Function Off-Mom
Circuit SPST-NO
Actuator Type Round, Button
Termination Style PC Pin
Current Rating 100mA
Terminal Pitch 2.6mm
Ingress Protection IP40
Orientation Straight
Current Rating (Amps) 100mA DC
Voltage - Rated DC 30V
Type Keyswitch
Termination PC Pin
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Tactile Feedback
Series K12
Published 2010
Packaging Bulk
Operating Temperature -40°C~85°C
Physical
Housing Material Nylon
Mounting Type Through Hole
Mount Through Hole
Contact Material Tin
Supply Chain
Factory Lead Time 14 Weeks
