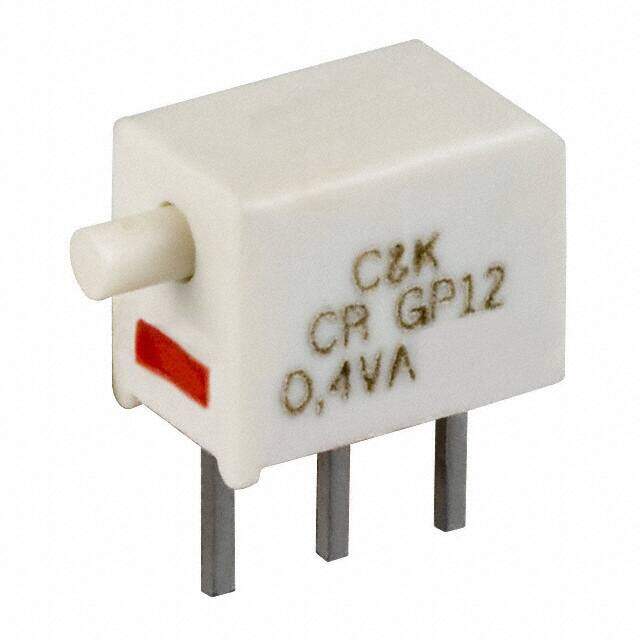

GP12MCBE
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPDT 0.4VA 20V
PDF
/
Buying Options
Total Price: USD $9.71
Unit Price: USD $9.7064
≥1 USD $9.7064
≥10 USD $8.74104
≥100 USD $8.374784
≥500 USD $7.962944
≥1000 USD $7.642624
≥3000 USD $7.185006
Inventory: 432
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Contact Material Gold
Mount Through Hole
Mounting Type Through Hole, Right Angle
Housing Material Nylon
Actuator Material Glass, Nylon
Technical
Operating Temperature -30°C~85°C
Packaging Bulk
Published 2006
Series GP
Feature Epoxy Sealed Terminals
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pins
Type Standard
Number of Positions 2
Power Rating 400mW
Voltage - Rated DC 20V
Current Rating (Amps) 0.4VA AC/DC
Orientation Right Angle
Ingress Protection IP57 - Dust Protected, Waterproof
Depth 8.99mm
Termination Style PC Pin
Voltage - Rated AC 20V
Actuator Type Round, Plunger
Circuit SPDT
Switch Function On-Mom
Color - Actuator/Cap White
Max Voltage Rating (AC) 20V
Electrical Life 40,000 Cycles
Max Voltage Rating (DC) 20V
Mechanical Life 40,000 Cycles
Contact Current Rating 400mA
Illumination Type Illuminated
Dimensions
Length 4.5mm
Actuator Length 1.98mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
Ratings IP57, Waterproof
