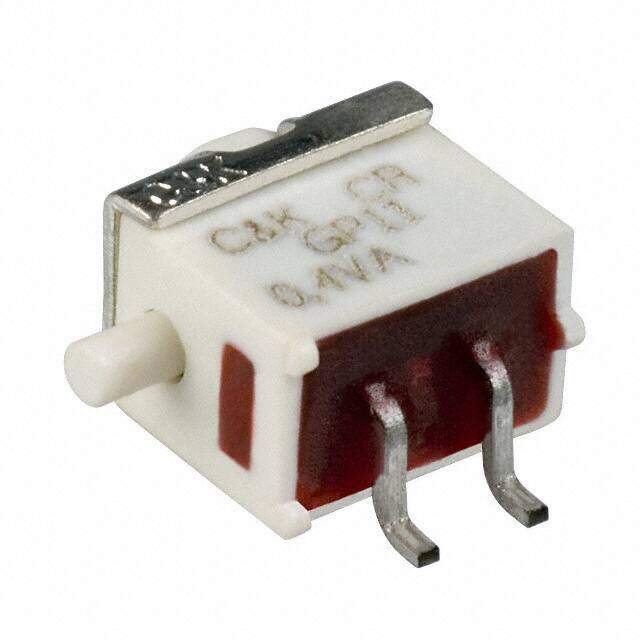

GP11MSA1BE
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPST-NO 0.4VA 20V
PDF
/
Buying Options
Total Price: USD $9.94
Unit Price: USD $9.9352
≥1 USD $9.9352
≥10 USD $8.95136
≥100 USD $8.57648
≥500 USD $8.154784
≥1000 USD $7.82672
≥3000 USD $7.358032
Inventory: 1159
Minimum: 1
-
+
Technical Details
Compliance
Ratings IP57, Waterproof
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Actuator Length 1.98mm
Length 8.64mm
Technical
Illumination Type Illuminated
Mechanical Life 40,000 Cycles
Max Voltage Rating (DC) 20V
Throw Configuration SPST
Electrical Life 40,000 Cycles
Max Voltage Rating (AC) 20V
Color - Actuator/Cap White
Switch Function Off-Mom
Circuit SPST-NO
Actuator Type Round, Plunger
Voltage - Rated AC 20V
Termination Style Gull Wing
Depth 8.99mm
Ingress Protection IP57 - Dust Protected, Waterproof
Orientation Right Angle
Current Rating (Amps) 0.4VA AC/DC
Voltage - Rated DC 20V
Power Rating 400mW
Type Standard
Termination Gull Wing
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Epoxy Sealed Terminals
Series GP
Published 2009
Packaging Tape & Reel (TR)
Operating Temperature -30°C~85°C
Physical
Actuator Material Glass, Nylon
Housing Material Nylon
Mounting Type Surface Mount, Right Angle
Mount Surface Mount
Contact Plating Gold
Supply Chain
Factory Lead Time 16 Weeks
