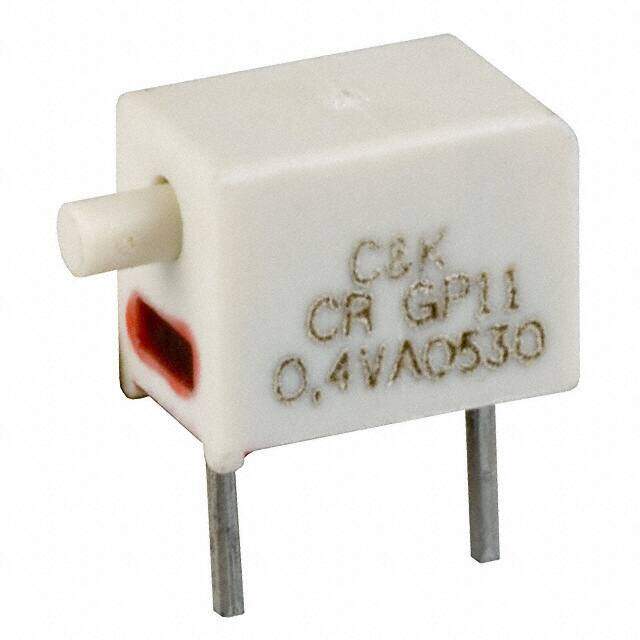

GP11MCBE
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
C & K COMPONENTS GP11MCBEPushbutton Switch, SPST, Off-(On), 20 V, 20 V, Solder
PDF
/
Buying Options
Total Price: USD $10.95
Unit Price: USD $10.9472
≥1 USD $10.9472
≥10 USD $9.8912
≥100 USD $9.414944
≥500 USD $8.938864
≥1000 USD $8.621492
≥3000 USD $8.09255
Inventory: 1098
Minimum: 1
-
+
Technical Details
Compliance
Ratings IP57, Waterproof
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Dimensions
Actuator Length 1.98mm
Length 4.5mm
Technical
Illumination Type Illuminated
Mechanical Life 40,000 Cycles
Max Voltage Rating (DC) 20V
Throw Configuration SPST
Electrical Life 40,000 Cycles
Max Voltage Rating (AC) 20V
Color - Actuator/Cap White
Insulation Resistance 1GOhm
Switch Function Off-Mom
Circuit SPST-NO
Actuator Type Round, Plunger
Voltage - Rated AC 20V
Termination Style PC Pin
Depth 8.99mm
Ingress Protection IP57 - Dust Protected, Waterproof
Orientation Right Angle
Current Rating (Amps) 0.4VA AC/DC
Voltage - Rated DC 20V
Power Rating 400mW
Type Standard
Termination PC Pins
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Epoxy Sealed Terminals
Series GP
Published 2006
Packaging Bulk
Operating Temperature -30°C~85°C
Physical
Actuator Material Glass, Nylon
Housing Material Nylon
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Plating Gold
Supply Chain
Factory Lead Time 16 Weeks
