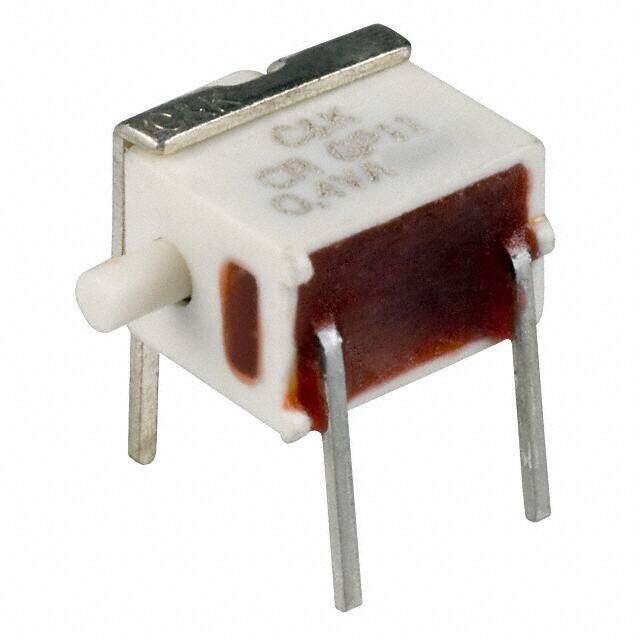

GP11MAKE
RoHS
/
Package /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPST-NO 0.4VA 20V
PDF
/
Inventory: 3771
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Plating Gold
Mount Through Hole
Mounting Type Through Hole, Right Angle
Housing Material Nylon
Actuator Material Glass, Nylon
Technical
Operating Temperature -30°C~85°C
Packaging Bulk
Published 2003
Series GP
Feature Epoxy Sealed Terminals
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pin
Type Standard
Max Operating Temperature 85°C
Min Operating Temperature -30°C
Power Rating 400mW
Voltage - Rated DC 20V
Current Rating (Amps) 0.4VA AC/DC
Orientation Right Angle
Ingress Protection IP57 - Dust Protected, Waterproof
Termination Style PC Pin
Voltage - Rated AC 20V
Actuator Type Round, Plunger
Circuit SPST-NO
Switch Function Off-Mom
Color - Actuator/Cap White
Max Voltage Rating (AC) 20V
Electrical Life 40,000 Cycles
Throw Configuration SPST
Max Voltage Rating (DC) 20V
Mechanical Life 40,000 Cycles
Illumination Type Illuminated
Dimensions
Actuator Length 1.98mm
Compliance
RoHS Status Non-RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Contains Lead
Ratings IP57, Waterproof
