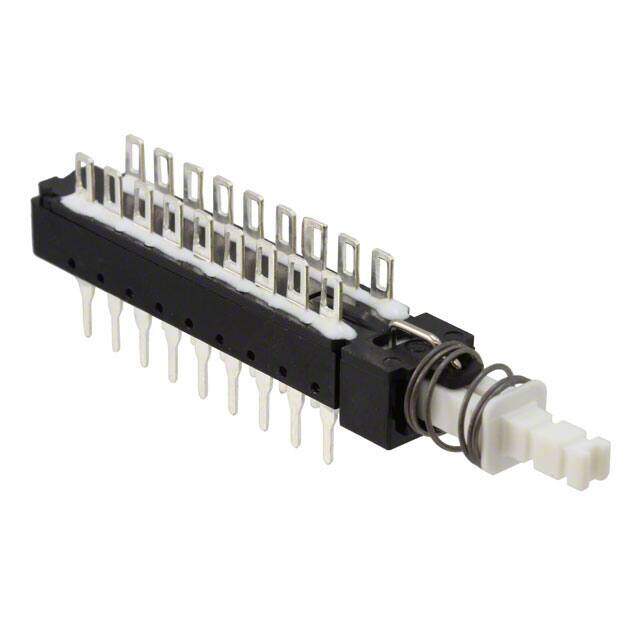

F6UEETB
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
Pushbutton Switches Pb Swtch/F Series 6Pdt Alt Seale
PDF
/
Buying Options
Total Price: USD $5.55
Unit Price: USD $5.551097
≥1 USD $5.551097
≥10 USD $5.23689
≥100 USD $4.940463
≥500 USD $4.660809
≥1000 USD $4.396989
Inventory: 1274
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Actuator Length 9mm
Length 9.8mm
Technical
Mechanical Life 100,000 Cycles
Max Voltage Rating (DC) 125V
Electrical Life 100,000 Cycles
Max Current Rating 500mA
Max Voltage Rating (AC) 125V
Color - Actuator/Cap White
Contact Resistance 20mOhm
Switch Function On-On
Circuit 6PDT
Actuator Type Plunger for Cap
Voltage - Rated AC 125V
Termination Style PC Pin, Solder Lug
Current Rating 500mA
Depth 66.4mm
Orientation Right Angle
Current Rating (Amps) 500mA AC/DC
Voltage - Rated DC 30V
Type Standard
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature RTV Adhesive Sealant on Terminals
Series F
Published 2012
Packaging Bulk
Operating Temperature -40°C~70°C
Physical
Actuator Material Polyester
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Plating Silver
Contact Material Brass
Supply Chain
Factory Lead Time 13 Weeks
