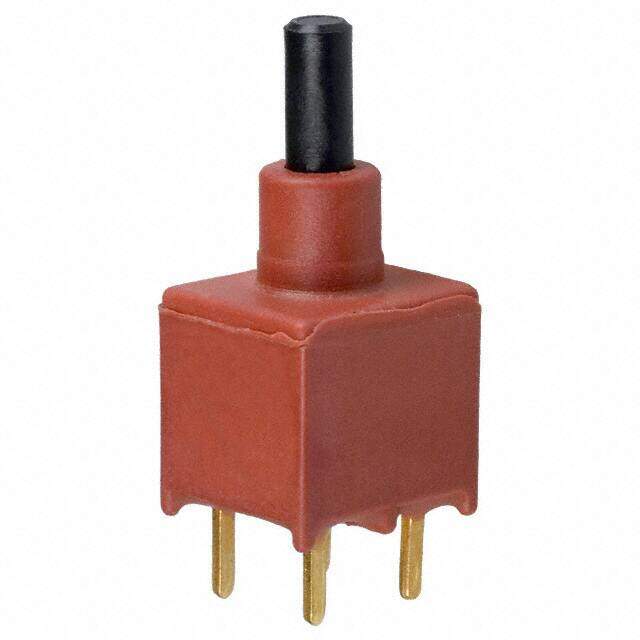

EP21SD1CBE
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH DPST-NO 0.4VA 20V
PDF
/
Buying Options
Total Price: USD $10.37
Unit Price: USD $10.3664
≥1 USD $10.3664
≥10 USD $9.3676
≥100 USD $8.916512
≥500 USD $8.4656
≥1000 USD $8.165124
≥3000 USD $7.664184
Inventory: 243
Minimum: 1
-
+
Technical Details
Compliance
Ratings IP57, Waterproof
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Actuator Length 5.46mm
Length 8.13mm
Technical
Max Voltage Rating (DC) 20V
Throw Configuration DPST
Electrical Life 60,000 Cycles
Max Voltage Rating (AC) 20V
Color - Actuator/Cap Black
Switch Function Off-Mom
Circuit DPST-NO
Actuator Type Round, Plunger
Voltage - Rated AC 20V
Termination Style PC Pin
Depth 9.14mm
Ingress Protection IP57 - Dust Protected, Waterproof
Orientation Straight
Current Rating (Amps) 0.4VA AC/DC
Voltage - Rated DC 20V
Power Rating 400mW
Type Standard
Termination PC Pins
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Epoxy Sealed Terminals
Series EP
Published 2009
Packaging Bulk
Operating Temperature -30°C~85°C
Physical
Actuator Material Glass, Nylon, Polyester, Thermoplastic
Housing Material Nylon
Mounting Type Through Hole
Mount Through Hole
Contact Plating Gold
Supply Chain
Factory Lead Time 11 Weeks
