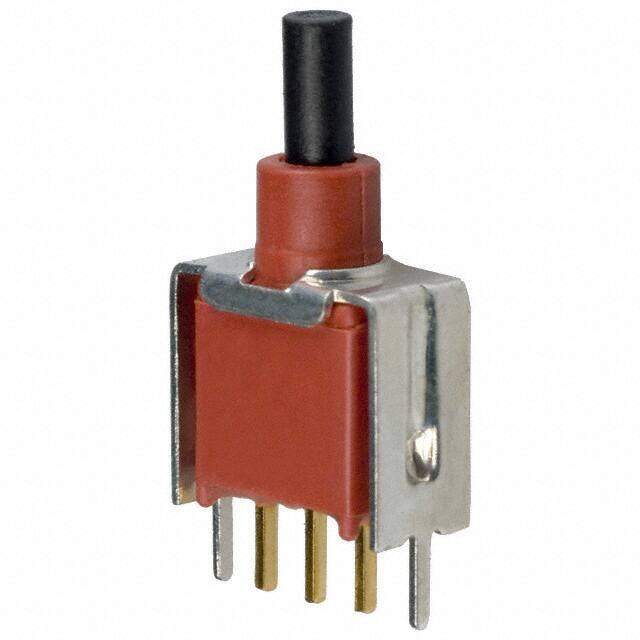

EP12SD1V3BE
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPDT 0.4VA 20V
PDF
/
Buying Options
Total Price: USD $8.25
Unit Price: USD $8.2544
≥1 USD $8.2544
≥10 USD $7.4404
≥100 USD $7.129056
≥500 USD $6.778288
≥1000 USD $6.50569
≥3000 USD $6.116097
Inventory: 268
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Contact Material Gold
Mount Brackets, PCB, Through Hole
Mounting Type Through Hole
Actuator Material Glass, Nylon, Polyester, Thermoplastic
Technical
Operating Temperature -30°C~85°C
Packaging Bulk
Published 2009
Series EP
Feature Epoxy Sealed Terminals
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination PC Pins
Type Standard
Power Rating 400mW
Voltage - Rated DC 20V
Current Rating (Amps) 0.4VA AC/DC
Orientation Straight
Ingress Protection IP57 - Dust Protected, Waterproof
Depth 6.1mm
Termination Style PC Pin
Voltage - Rated AC 20V
Actuator Type Round, Plunger
Circuit SPDT
Switch Function On-Mom
Color - Actuator/Cap Black
Max Voltage Rating (AC) 20V
Electrical Life 30,000 Cycles
Max Voltage Rating (DC) 20V
Contact Current Rating 400mA
Dimensions
Length 10.57mm
Actuator Length 5.46mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
Ratings IP57, Waterproof
