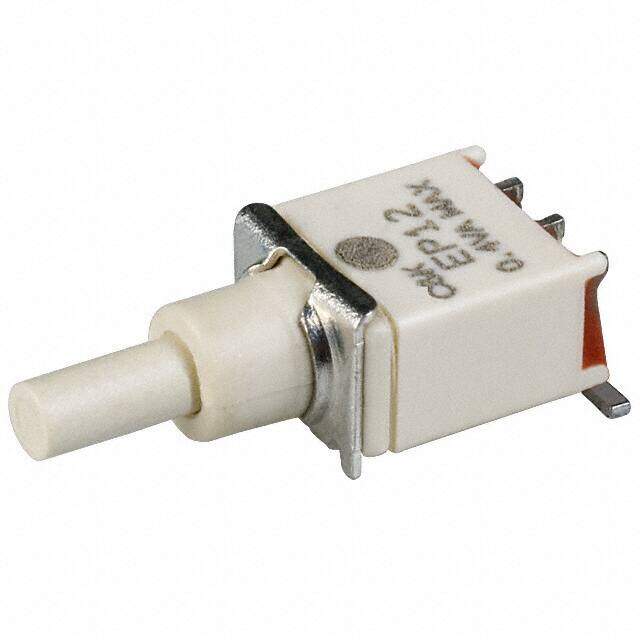

EP12SD1SAKE
RoHS
/
Package /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPDT 0.4VA 20V
PDF
/
Inventory: 6269
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Contact Plating Gold
Mount Surface Mount
Mounting Type Surface Mount, Right Angle
Housing Material Nylon
Actuator Material Glass, Nylon, Polyester, Thermoplastic
Technical
Operating Temperature -30°C~85°C
Packaging Tape & Reel (TR)
Published 2003
Series EP
Feature Epoxy Sealed Terminals
Part Status Obsolete
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Termination Gull Wing
Type Standard
Power Rating 400mW
Voltage - Rated DC 20V
Current Rating (Amps) 0.4VA AC/DC
Orientation Right Angle
Ingress Protection IP57 - Dust Protected, Waterproof
Termination Style Gull Wing
Voltage - Rated AC 20V
Actuator Type Round, Plunger
Circuit SPDT
Switch Function On-Mom
Color - Actuator/Cap White
Max Voltage Rating (AC) 20V
Electrical Life 30,000 Cycles
Max Voltage Rating (DC) 20V
Dimensions
Length 10.41mm
Actuator Length 5.46mm
Compliance
RoHS Status Non-RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Contains Lead
Ratings IP57, Waterproof
