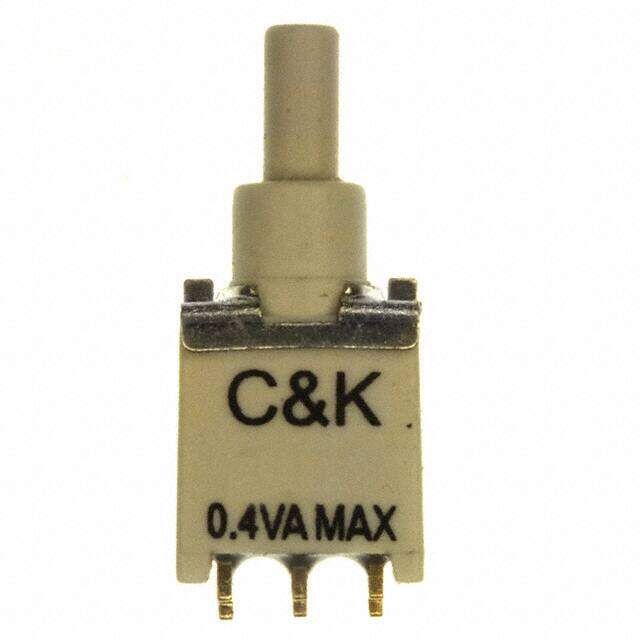

EP12SD1SA1BE image
Favorite
EP12SD1SA1BE image
Favorite

EP12SD1SA1BE

C&K
RoHS
RoHS RoHS compliant
Package /
Category Switches / Pushbutton Switches
Description SWITCH PUSH SPDT 0.4VA 20V
PDF
/
Buying Options
Total Price: USD $6.93
Unit Price: USD $6.9344
≥1 USD $6.9344
≥10 USD $6.22864
≥100 USD $5.941408
≥500 USD $5.685856
≥1000 USD $5.462336
≥3000 USD $5.174858
Inventory: 1180
Minimum: 1
-
+

Technical Details

Compliance

Ratings IP57, Waterproof
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No

Dimensions

Actuator Length 5.46mm
Length 8.25mm

Technical

Contact Current Rating 400mA
Max Voltage Rating (DC) 20V
Electrical Life 30,000 Cycles
Max Voltage Rating (AC) 20V
Color - Actuator/Cap White
Switch Function On-Mom
Circuit SPDT
Actuator Type Round, Plunger
Voltage - Rated AC 20V
Termination Style Gull Wing
Depth 20.12mm
Ingress Protection IP57 - Dust Protected, Waterproof
Orientation Right Angle
Current Rating (Amps) 0.4VA AC/DC
Voltage - Rated DC 20V
Power Rating 400mW
Type Standard
Termination Gull Wing
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Feature Epoxy Sealed Terminals
Series EP
Published 2009
Packaging Tape & Reel (TR)
Operating Temperature -30°C~85°C

Physical

Actuator Material Glass, Nylon, Polyester, Thermoplastic
Mounting Type Surface Mount, Right Angle
Mount Surface Mount
Contact Material Gold

Supply Chain

Factory Lead Time 11 Weeks
