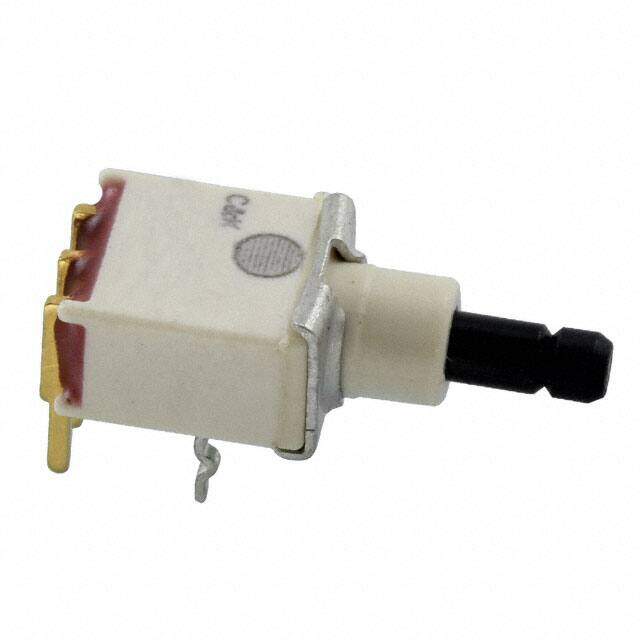

EP12RD1ABE
RoHS
/
Package /
Category Switches / Pushbutton Switches
Description
Switch Push Button ON Mom SPDT Round Plunger 20VAC 20VDC 0.4VA Momentary Contact PC Pins Thru-Hole T/R
PDF
/
Buying Options
Total Price: USD $15.51
Unit Price: USD $15.506662
≥1 USD $15.506662
≥200 USD $6.187698
≥500 USD $5.98026
≥1000 USD $5.879166
Inventory: 3107
Minimum: 1
-
+
Technical Details
Compliance
Ratings IP57, Waterproof
RoHS Status RoHS Compliant
Dimensions
Actuator Length 5.46mm
Length 8.13mm
Technical
Max Voltage Rating (DC) 20V
Electrical Life 30,000 Cycles
Max Voltage Rating (AC) 20V
Color - Actuator/Cap Black
Switch Function On-Mom
Circuit SPDT
Actuator Type Plunger for Cap
Voltage - Rated AC 20V
Termination Style PC Pin
Depth 6.32mm
Ingress Protection IP57 - Dust Protected, Waterproof
Orientation Right Angle
Current Rating (Amps) 0.4VA AC/DC
Voltage - Rated DC 20V
Power Rating 400mW
Type Standard
Termination PC Pins
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Obsolete
Feature Epoxy Sealed Terminals
Series EP
Published 2010
Packaging Tray
Operating Temperature -30°C~85°C
Physical
Actuator Material Glass, Nylon, Polyester, Thermoplastic
Housing Material Nylon
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Plating Gold
Supply Chain
Factory Lead Time 9 Weeks
