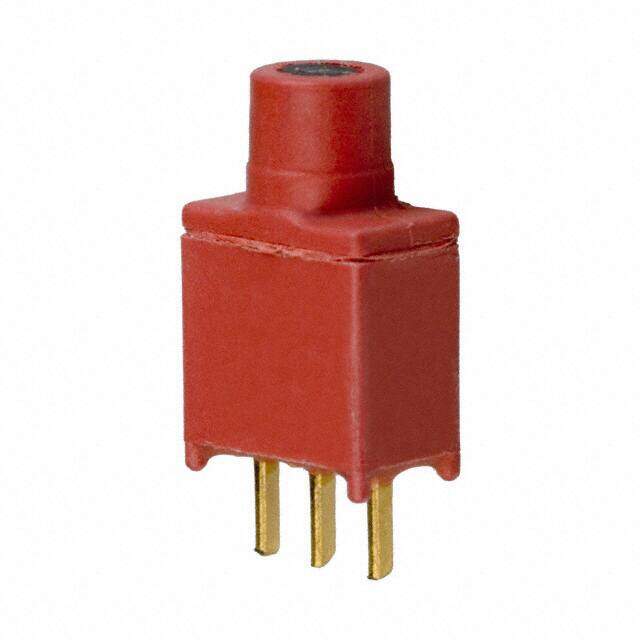

EP12FPD1CBE
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPDT 0.4VA 20V
PDF
/
Buying Options
Total Price: USD $6.57
Unit Price: USD $6.567126
≥1 USD $6.567126
≥200 USD $2.541774
≥500 USD $2.452497
≥1000 USD $2.409172
Inventory: 4101
Minimum: 1
-
+
Technical Details
Compliance
Ratings IP57, Waterproof
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Length 8.13mm
Technical
Max Voltage Rating (DC) 20V
Electrical Life 30,000 Cycles
Max Voltage Rating (AC) 20V
Color - Actuator/Cap Black
Switch Function On-Mom
Circuit SPDT
Actuator Type Round, Plunger, Flush
Voltage - Rated AC 20V
Termination Style PC Pin
Depth 5.08mm
Ingress Protection IP57 - Dust Protected, Waterproof
Orientation Straight
Current Rating (Amps) 0.4VA AC/DC
Voltage - Rated DC 20V
Power Rating 400mW
Type Standard
Termination PC Pins
Part Status Active
Feature Epoxy Sealed Terminals
Series EP
Published 2009
Packaging Tray
Operating Temperature -30°C~85°C
Physical
Actuator Material Glass, Nylon, Polyester, Thermoplastic
Housing Material Nylon
Mounting Type Through Hole
Mount Through Hole
Contact Plating Gold
Supply Chain
Factory Lead Time 11 Weeks
