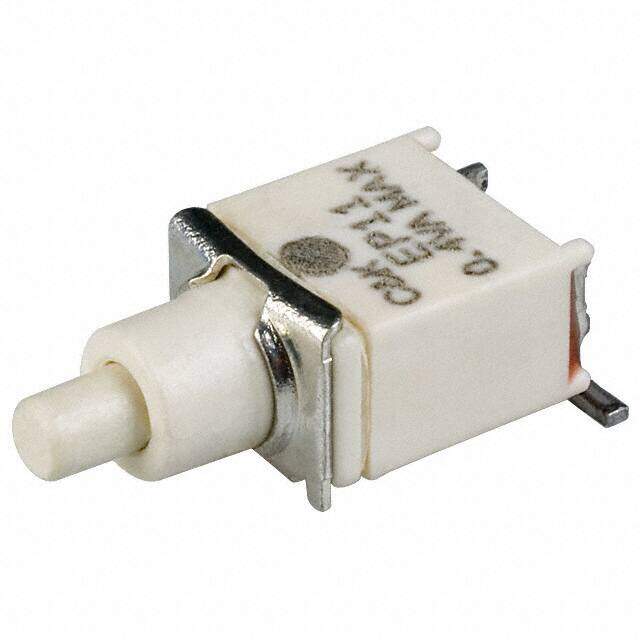

EP11SD1SAKE
RoHS
/
Package /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPST-NO 0.4VA 20V
PDF
/
Buying Options
Total Price: USD $43.45
Unit Price: USD $43.45205
≥1 USD $43.45205
≥10 USD $35.65255
≥100 USD $34.53915
≥500 USD $33.4248
≥1000 USD $32.31045
Inventory: 1169
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Contact Plating Gold
Mount Surface Mount
Mounting Type Surface Mount, Right Angle
Housing Material Nylon
Actuator Material Glass, Nylon, Polyester, Thermoplastic
Technical
Operating Temperature -30°C~85°C
Packaging Tape & Reel (TR)
Published 2003
Series EP
Feature Epoxy Sealed Terminals
Part Status Obsolete
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Termination Gull Wing
Type Standard
Power Rating 400mW
Voltage - Rated DC 20V
Current Rating (Amps) 0.4VA AC/DC
Orientation Right Angle
Ingress Protection IP57 - Dust Protected, Waterproof
Termination Style Gull Wing
Voltage - Rated AC 20V
Actuator Type Round, Plunger
Circuit SPST-NO
Switch Function Off-Mom
Color - Actuator/Cap White
Max Voltage Rating (AC) 20V
Electrical Life 60,000 Cycles
Throw Configuration SPST
Max Voltage Rating (DC) 20V
Dimensions
Length 10.41mm
Actuator Length 5.46mm
Compliance
RoHS Status Non-RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Contains Lead
Ratings IP57, Waterproof
