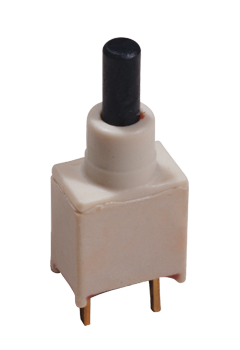

EP11SD1CKE
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPST-NO 0.4VA 20V
PDF
/
Buying Options
Total Price: USD $9.42
Unit Price: USD $9.416119
≥1 USD $9.416119
≥200 USD $3.75752
≥500 USD $3.631481
≥1000 USD $3.569775
Inventory: 3892
Minimum: 1
-
+
Technical Details
Compliance
Ratings IP57, Waterproof
RoHS Status ROHS3 Compliant
Dimensions
Actuator Length 5.46mm
Length 8.13mm
Technical
Max Voltage Rating (DC) 20V
Throw Configuration SPST
Electrical Life 60,000 Cycles
Max Voltage Rating (AC) 20V
Color - Actuator/Cap Black
Switch Function Off-Mom
Circuit SPST-NO
Actuator Type Round, Plunger
Voltage - Rated AC 20V
Termination Style PC Pin
Depth 5.08mm
Ingress Protection IP57 - Dust Protected, Waterproof
Orientation Straight
Current Rating (Amps) 0.4VA AC/DC
Voltage - Rated DC 20V
Power Rating 400mW
Min Operating Temperature -30°C
Max Operating Temperature 85°C
Type Standard
Termination PC Pins
Part Status Active
Feature Epoxy Sealed Terminals
Series EP
Published 2012
Packaging Tray
Operating Temperature -30°C~85°C
Physical
Actuator Material Glass, Nylon, Polyester, Thermoplastic
Mounting Type Through Hole
Mount Through Hole
Contact Plating Gold
Supply Chain
Factory Lead Time 10 Weeks
