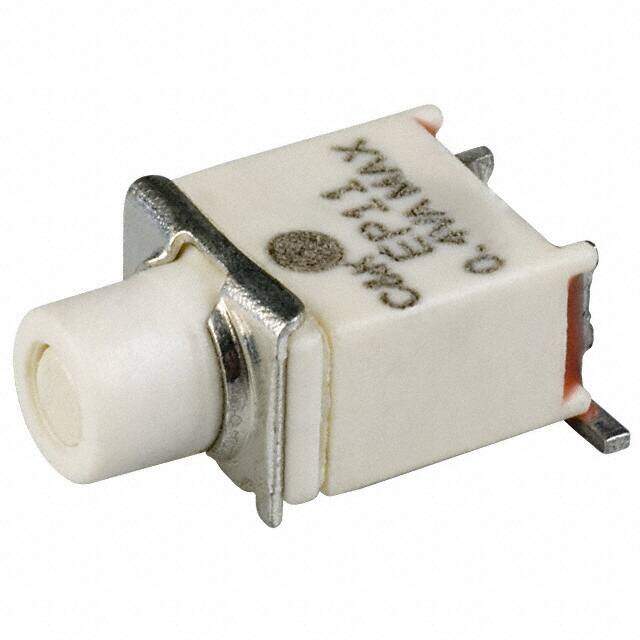

EP11FPD1SAKE
RoHS
/
Package /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPST-NO 0.4VA 20V
PDF
/
Inventory: 4096
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Ratings IP57, Waterproof
Lead Free Contains Lead
Flammability Rating UL94 V-0
RoHS Status Non-RoHS Compliant
Radiation Hardening No
Dimensions
Actuator Length 0m
Length 10.41mm
Technical
Max Voltage Rating (DC) 20V
Throw Configuration SPST
Electrical Life 60,000 Cycles
Max Voltage Rating (AC) 120V
Color - Actuator/Cap White
Switch Function Off-Mom
Circuit SPST-NO
Actuator Type Round, Plunger, Flush
Voltage - Rated AC 20V
Termination Style Gull Wing
Ingress Protection IP57 - Dust Protected, Waterproof
Orientation Right Angle
Current Rating (Amps) 0.4VA AC/DC
Voltage - Rated DC 20V
Power Rating 400mW
Min Operating Temperature -30°C
Max Operating Temperature 85°C
Type Standard
Termination Gull Wing
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Obsolete
Feature Epoxy Sealed Terminals
Series EP
Published 2006
Packaging Cut Tape (CT)
Operating Temperature -30°C~85°C
Physical
Actuator Material Glass, Nylon, Polyester, Thermoplastic
Housing Material Nylon
Mounting Type Surface Mount, Right Angle
Mount Surface Mount
Contact Plating Gold
Supply Chain
Factory Lead Time 9 Weeks
