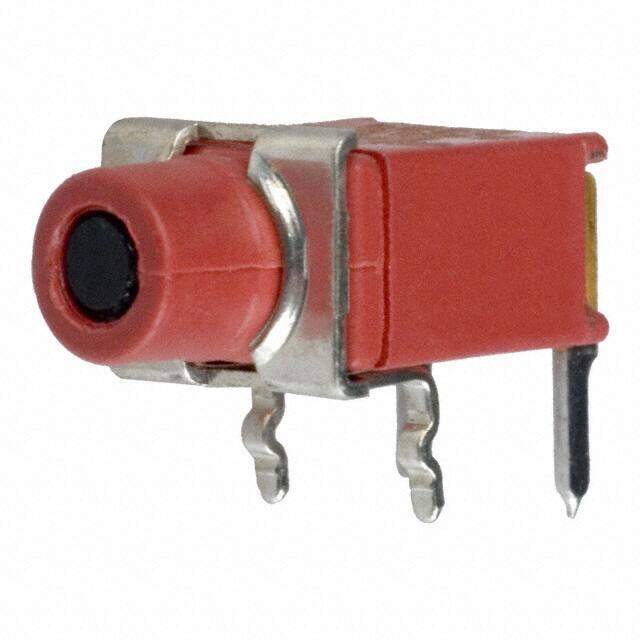

EP11FPD1APE
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPST-NO 0.4VA 20V
PDF
/
Buying Options
Total Price: USD $5.42
Unit Price: USD $5.420964
≥1 USD $5.420964
≥200 USD $2.098014
≥500 USD $2.024492
≥1000 USD $1.987731
Inventory: 1794
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Contact Plating Gold
Mount Through Hole
Mounting Type Through Hole, Right Angle
Actuator Material Glass, Nylon, Polyester, Thermoplastic
Technical
Operating Temperature -30°C~85°C
Packaging Tray
Published 2009
Series EP
Feature Epoxy Sealed Terminals
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination PC Pins
Type Standard
Power Rating 400mW
Voltage - Rated DC 20V
Current Rating (Amps) 0.4VA AC/DC
Orientation Right Angle
Ingress Protection IP57 - Dust Protected, Waterproof
Termination Style PC Pin
Voltage - Rated AC 20V
Actuator Type Round, Plunger, Flush
Circuit SPST-NO
Switch Function Off-Mom
Color - Actuator/Cap Black
Max Voltage Rating (AC) 20V
Electrical Life 60,000 Cycles
Throw Configuration SPST
Max Voltage Rating (DC) 20V
Dimensions
Length 8.13mm
Actuator Length 0m
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
Ratings IP57, Waterproof
