ELUMOASAQ6C12
RoHS
RoHS compliant
RoHS compliantPackage SMD/SMT
Category Switches / Pushbutton Switches
Description

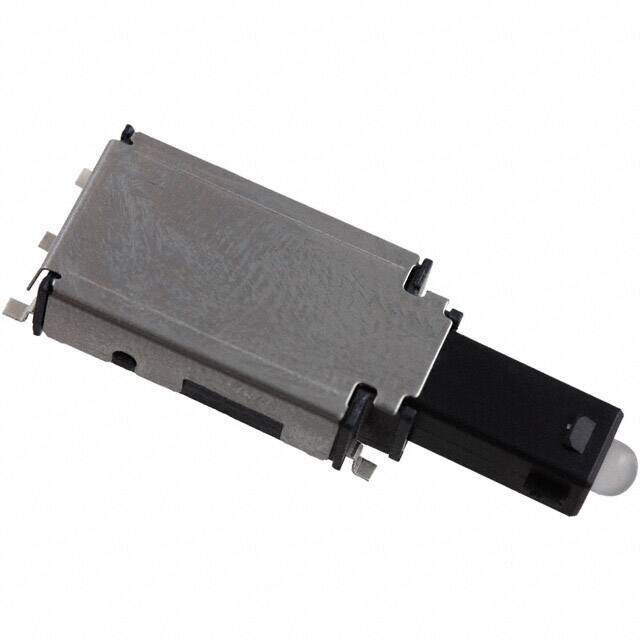

C & K COMPONENTS ELUMOASAQ6C12 Illuminated Pushbutton Switch, SPST, Off-(On), 250 mA, Green
PDF
/
Buying Options
Total Price: USD $5.45
Unit Price: USD $5.4472
≥1 USD $5.4472
Inventory: 361
Minimum: 1
-
+
Technical Details
Technical
Contact Current Rating 250mA
Illumination Type LED
Illumination Color Green
Max Voltage Rating (DC) 50V
Max Current Rating 250mA
Illumination Type, Color LED, Green
Illumination Voltage (Nominal) 2VDC
Color - Actuator/Cap Black
Insulation Resistance 1GOhm
Switch Function On-Mom
Circuit SPDT
Actuator Type Rectangular, Button
Termination Style Gull Wing
Current Rating 250mA
Depth 28.2mm
Orientation Right Angle
Current Rating (Amps) 250mA DC
Voltage - Rated DC 50V
Power Rating 3.5W
Type Standard, Illuminated
Termination Gull Wing
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series ELUM?
Published 2006
Packaging Tape & Reel (TR)
Operating Temperature -40°C~80°C
Dimensions
Length 11.43mm
Actuator Length 7.62mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
Physical
Actuator Material Glass, Nylon
Housing Material Polymer
Package / Case SMD/SMT
Mounting Type Surface Mount, Right Angle
Mount Surface Mount
Contact Plating Silver
Contact Material Stainless Steel
Supply Chain
Factory Lead Time 11 Weeks
