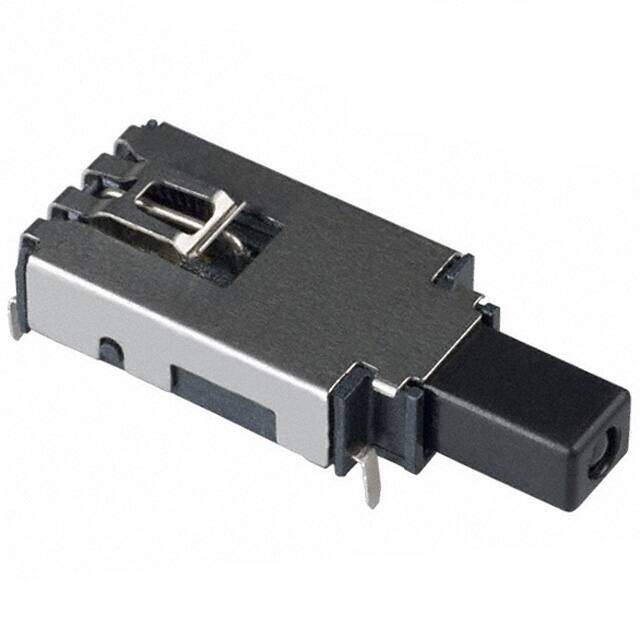

ELUMEETHQ8C12
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPDT 0.25A 50V
PDF
/
Buying Options
Total Price: USD $10.2
Unit Price: USD $10.1992
≥1 USD $10.1992
≥10 USD $9.21272
≥100 USD $8.769376
≥500 USD $8.32597
≥1000 USD $8.03037
Inventory: 220
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Actuator Length 7.62mm
Length 11.43mm
Technical
Illumination Color Green, Orange
Illumination Type LED
Max Voltage Rating (DC) 50V
Max Current Rating 250mA
Illumination Type, Color LED, Amber/Green
Illumination Voltage (Nominal) 2VDC
Color - Actuator/Cap Black
Insulation Resistance 1GOhm
Switch Function On-On
Circuit SPDT
Actuator Type Rectangular, Button
Termination Style PC Pin
Current Rating 250mA
Depth 28.2mm
Orientation Right Angle
Current Rating (Amps) 250mA DC
Voltage - Rated DC 50V
Power Rating 3.5W
Type Standard, Illuminated
Termination PC Pins
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series ELUM?
Published 2011
Packaging Tray
Operating Temperature -40°C~80°C
Physical
Actuator Material Glass, Nylon
Housing Material Polymer
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Plating Gold, Silver
Contact Material Stainless Steel
Supply Chain
Factory Lead Time 11 Weeks
