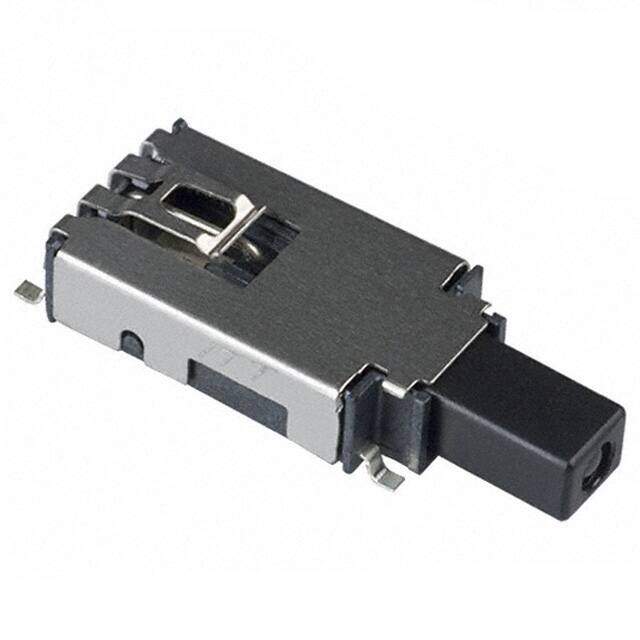

ELUMEESAQ7C12
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPDT 0.25A 50V
PDF
/
Buying Options
Total Price: USD $16.75
Unit Price: USD $16.749978
≥1 USD $16.749978
≥200 USD $6.481787
≥450 USD $6.254656
≥900 USD $6.141746
Inventory: 1118
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Actuator Length 7.62mm
Width 11.43mm
Length 11.43mm
Technical
Illumination Type LED
Operating Force 2.5 N
Contact Current Rating 250mA
Max Voltage Rating (DC) 50V
Throw Configuration SPDT, SPST
Number of Poles 1
Max Current Rating 250mA
Illumination Type, Color LED, Blue
Illumination Voltage (Nominal) 2VDC
Color - Actuator/Cap Black
Insulation Resistance 1GOhm
Contact Resistance 50mOhm
Switch Function On-On
Circuit SPDT
Actuator Type Rectangular, Button
Termination Style Gull Wing
Current Rating 250mA
Depth 28.2mm
Orientation Right Angle
Current Rating (Amps) 250mA DC
Voltage - Rated DC 50V
Power Rating 3.5W
Color Blue
Number of Positions 2
Type Standard, Illuminated
Termination Gull Wing
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series ELUM?
Published 2006
Packaging Tape & Reel (TR)
Operating Temperature -40°C~80°C
Physical
Actuator Material Glass, Nylon
Housing Material Polymer
Material Glass, Liquid Crystal Polymer
Mounting Type Surface Mount, Right Angle
Mount PCB, Surface Mount
Contact Plating Silver
Contact Material Stainless Steel
Supply Chain
Factory Lead Time 11 Weeks
