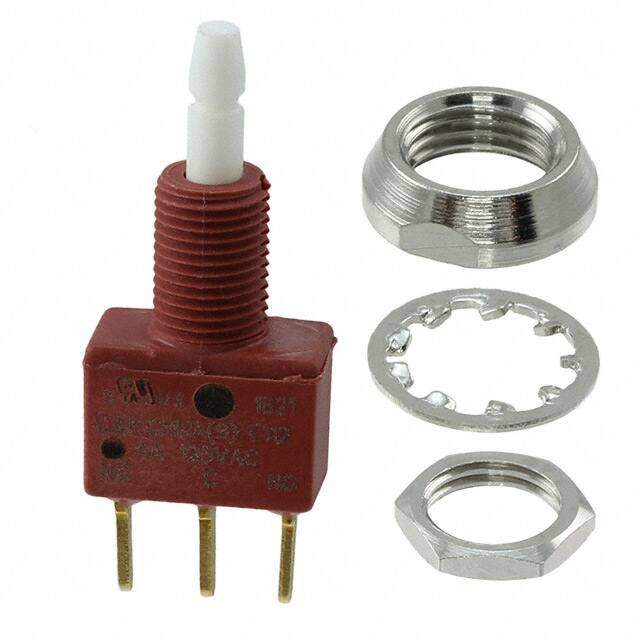

E112MYCGE
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON SPDT 4A 125V
PDF
/
Buying Options
Total Price: USD $7.68
Unit Price: USD $7.682347
≥1 USD $7.682347
≥10 USD $7.247502
≥100 USD $6.837268
≥500 USD $6.450247
≥1000 USD $6.085144
Inventory: 5121
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Actuator Length 8.41mm
Technical
Max Voltage Rating (DC) 28V
Electrical Life 40,000 Cycles
Max Voltage Rating (AC) 125V
Color - Actuator/Cap White
Panel Cutout Dimensions Circular - 6.35mm Dia
Switch Function On-Mom
Circuit SPDT
Actuator Type Plunger for Cap
Voltage - Rated AC 125V
Termination Style PC Pin
Current Rating 4A
Orientation Straight
Current Rating (Amps) 4A AC/DC
Voltage - Rated DC 28V
Type Standard
Termination PC Pins
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Process Sealed
Series E010
Published 2012
Packaging Bulk
Operating Temperature -30°C~75°C
Physical
Actuator Material Glass, Nylon, Polyester
Mounting Type Panel Mount, Rear
Mount Panel, Through Hole
Contact Plating Gold
Contact Material Silver
Supply Chain
Factory Lead Time 14 Weeks
