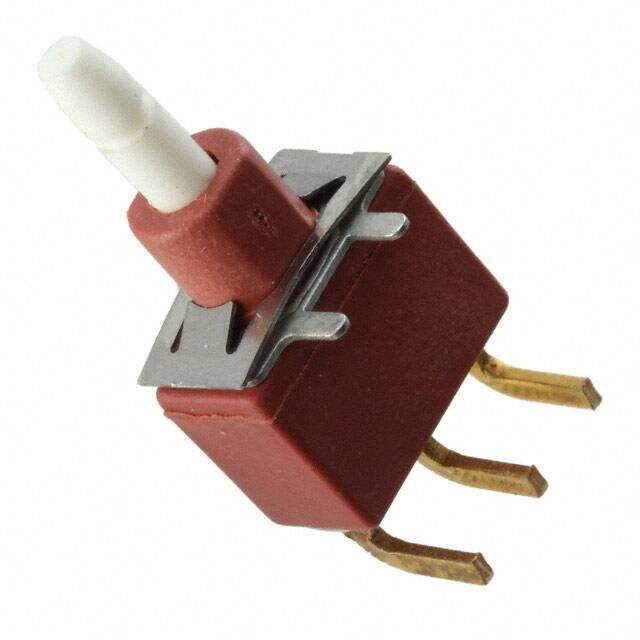

E112MD1ABE
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
Pushbutton Switches Pushbutton
PDF
/
Buying Options
Total Price: USD $6.99
Unit Price: USD $6.992505
≥1 USD $6.992505
≥200 USD $2.705887
≥500 USD $2.611358
≥1000 USD $2.564094
Inventory: 5853
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Actuator Length 8.41mm
Length 12.7mm
Technical
Max Voltage Rating (DC) 20V
Electrical Life 40,000 Cycles
Max Voltage Rating (AC) 20V
Color - Actuator/Cap White
Switch Function On-Mom
Circuit SPDT
Actuator Type Plunger for Cap
Voltage - Rated AC 20V
Termination Style PC Pin
Depth 28.3mm
Orientation Right Angle
Current Rating (Amps) 0.4VA AC/DC
Voltage - Rated DC 20V
Power Rating 400mW
Type Standard
Termination PC Pins
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Process Sealed
Series E010
Published 2012
Packaging Bulk
Operating Temperature -30°C~75°C
Physical
Actuator Material Glass, Nylon, Polyester
Mounting Type Through Hole, Right Angle
Mount Snap in, Through Hole
Contact Plating Gold
Supply Chain
Factory Lead Time 14 Weeks
