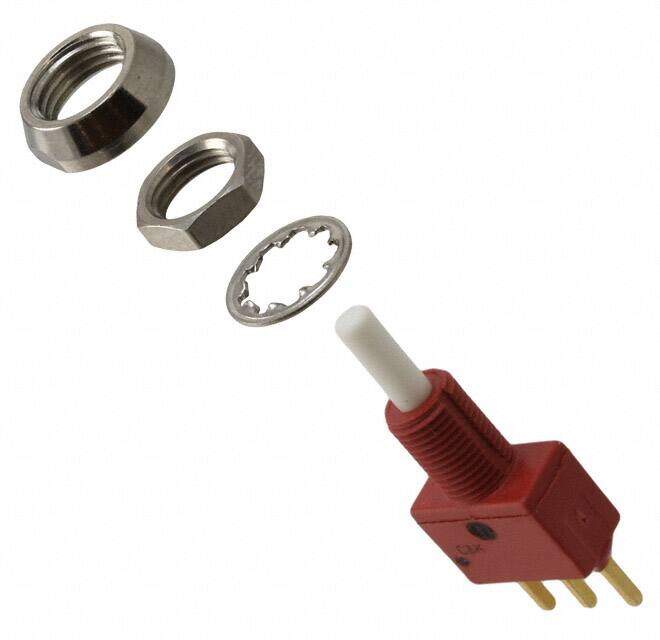

E112LYCBE
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPDT 0.4VA 20V
PDF
/
Buying Options
Total Price: USD $20.52
Unit Price: USD $20.52194
≥1 USD $20.52194
Inventory: 1186
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Actuator Length 8.58mm
Length 12.7mm
Technical
Max Voltage Rating (DC) 20V
Electrical Life 40,000 Cycles
Max Voltage Rating (AC) 20V
Color - Actuator/Cap White
Panel Cutout Dimensions Circular - 6.35mm Dia
Switch Function On-Mom
Circuit SPDT
Actuator Type Round, Plunger
Voltage - Rated AC 20V
Termination Style PC Pin
Depth 6.6mm
Orientation Straight
Current Rating (Amps) 0.4VA AC/DC
Voltage - Rated DC 20V
Power Rating 400mW
Type Standard
Termination PC Pins
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Process Sealed
Series E010
Published 2012
Packaging Bulk
Operating Temperature -30°C~75°C
Physical
Actuator Material Glass, Nylon, Polyester
Mounting Type Panel Mount, Rear
Mount Panel, Through Hole
Contact Plating Gold
Supply Chain
Factory Lead Time 14 Weeks
