APB4E01TZBE005
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description

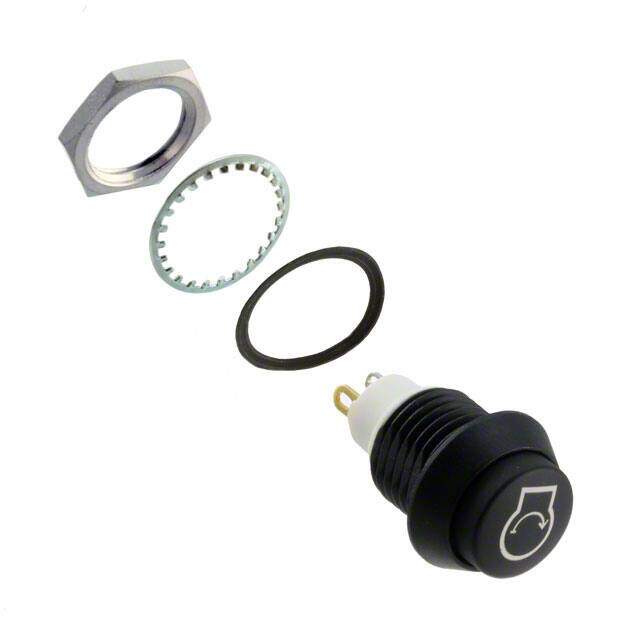

Pushbutton Switch SPST-NO Standard, Illuminated Panel Mount, Front
PDF
/
Buying Options
Total Price: USD $19.97
Unit Price: USD $19.9672
≥1 USD $19.9672
≥10 USD $18.13064
≥100 USD $17.315584
≥500 USD $15.787754
Inventory: 215
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Mount Front, Panel
Mounting Type Panel Mount, Front
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Published 2016
Series APB
Feature Engine Start Symbol
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Type Standard, Illuminated
Voltage - Rated DC 24V
Current Rating (Amps) 125mA AC 200mA DC
Ingress Protection IP67 - Dust Tight, Waterproof
Current Rating 200mA
Termination Style Solder Lug
Voltage - Rated AC 125V
Actuator Type Round, Button
Circuit SPST-NO
Switch Function Off-Mom
Panel Cutout Dimensions Circular - 13.80mm Dia
Color - Actuator/Cap Black
Illumination Voltage (Nominal) 3.5VDC
Illumination Type, Color LED, White
Electrical Life 500,000 Cycles
Throw Configuration SPST
Mechanical Life 1,000,000 Cycles
Contact Current Rating 400mA
Illumination Type LED
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
Ratings Dust Tight, IP67, Waterproof
