APB4E01TZBE002
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description

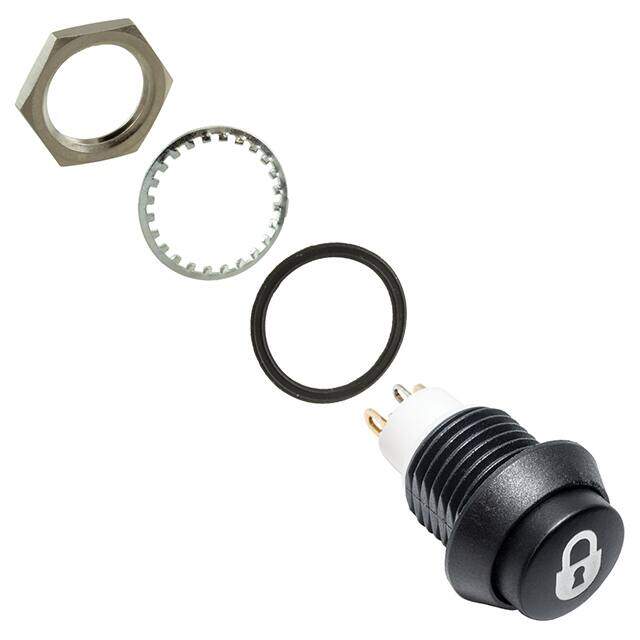

Pushbutton Switch SPST-NO Standard, Illuminated Panel Mount, Front
PDF
/
Buying Options
Total Price: USD $12.56
Unit Price: USD $12.5576
≥1 USD $12.5576
≥10 USD $11.25696
≥100 USD $10.762048
≥500 USD $9.83444
≥1000 USD $9.215879
≥3000 USD $8.535516
Inventory: 104
Minimum: 1
-
+
Technical Details
Compliance
Ratings Dust Tight, IP67, Waterproof
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Technical
Illumination Type LED
Contact Current Rating 400mA
Mechanical Life 1,000,000 Cycles
Throw Configuration SPST
Electrical Life 500,000 Cycles
Illumination Type, Color LED, White
Illumination Voltage (Nominal) 3.5VDC
Color - Actuator/Cap Black
Panel Cutout Dimensions Circular - 13.80mm Dia
Switch Function Off-Mom
Circuit SPST-NO
Actuator Type Round, Button
Voltage - Rated AC 125V
Termination Style Solder Lug
Current Rating 200mA
Ingress Protection IP67 - Dust Tight, Waterproof
Current Rating (Amps) 125mA AC 200mA DC
Voltage - Rated DC 24V
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Type Standard, Illuminated
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Locked Symbol
Series APB
Published 2016
Packaging Bulk
Operating Temperature -40°C~85°C
Physical
Mounting Type Panel Mount, Front
Mount Front, Panel
Supply Chain
Factory Lead Time 14 Weeks
