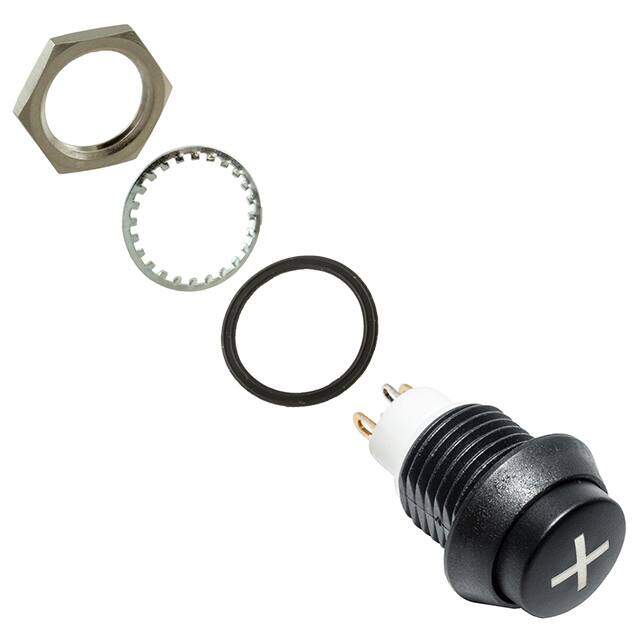

APB4E01TZBE001
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
Pushbutton Switch SPST-NO Standard, Illuminated Panel Mount, Front
PDF
/
Inventory: 7921
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Mount Front, Panel
Mounting Type Panel Mount, Front
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Published 2016
Series APB
Feature Plus Symbol
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Type Standard, Illuminated
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Voltage - Rated DC 24V
Current Rating (Amps) 125mA AC 200mA DC
Ingress Protection IP67 - Dust Tight, Waterproof
Current Rating 200mA
Termination Style Solder Lug
Voltage - Rated AC 125V
Illumination Type LED
Contact Current Rating 400mA
Mechanical Life 1,000,000 Cycles
Throw Configuration SPST
Electrical Life 500,000 Cycles
Illumination Type, Color LED, White
Illumination Voltage (Nominal) 3.5VDC
Color - Actuator/Cap Black
Panel Cutout Dimensions Circular - 13.80mm Dia
Switch Function Off-Mom
Circuit SPST-NO
Actuator Type Round, Button
Compliance
Ratings Dust Tight, IP67, Waterproof
Lead Free Lead Free
RoHS Status ROHS3 Compliant
