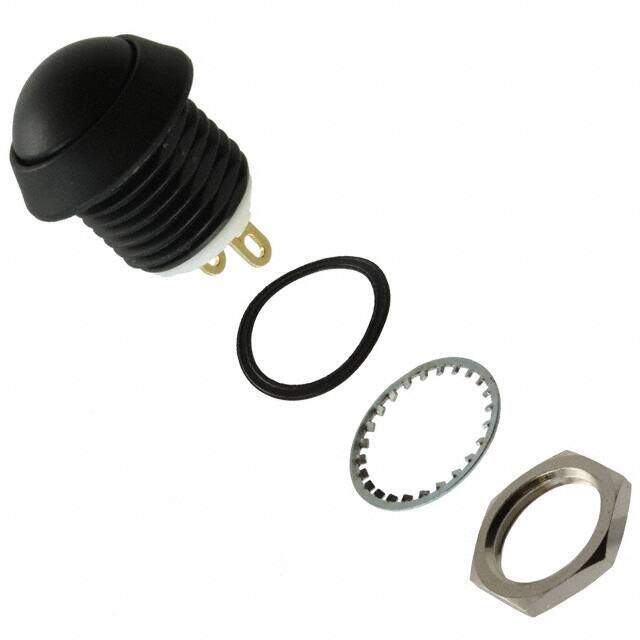

AP4D200TZBE
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPST-NO 0.125A 125V
PDF
/
Buying Options
Total Price: USD $14.23
Unit Price: USD $14.2296
≥1 USD $14.2296
≥10 USD $12.76
≥100 USD $12.198912
≥500 USD $11.56782
≥1000 USD $11.147294
≥3000 USD $10.44619
Inventory: 1266
Minimum: 1
-
+
Technical Details
Compliance
Ratings Dust Tight, IP67, Waterproof
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Actuator Length 3.54mm
Length 17.4mm
Technical
Thread Size M13
Illumination Type LED
Contact Current Rating 400mA
Mechanical Life 1,000,000 Cycles
Max Voltage Rating (DC) 50V
Throw Configuration SPST
Electrical Life 1,000,000 Cycles
Max Current Rating 400mA
Max Voltage Rating (AC) 125V
Color - Actuator/Cap Black
Contact Resistance 50mOhm
Panel Cutout Dimensions Circular - 13.80mm Dia
Switch Function Off-Mom
Circuit SPST-NO
Actuator Type Round, Button, Domed
Voltage - Rated AC 125V
Termination Style Solder Lug
Current Rating 200mA
Depth 17.4mm
Ingress Protection IP67 - Dust Tight, Waterproof
Orientation Straight
Current Rating (Amps) 125mA AC 200mA DC
Voltage - Rated DC 24V
Type Standard
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series AP
Published 2012
Packaging Tray
Operating Temperature -40°C~105°C
Physical
Actuator Material Polybutylene, Polycarbonate
Housing Material Polybutylene
Mounting Type Panel Mount, Front
Mount Front, Panel
Contact Plating Gold, Silver
Supply Chain
Factory Lead Time 14 Weeks
