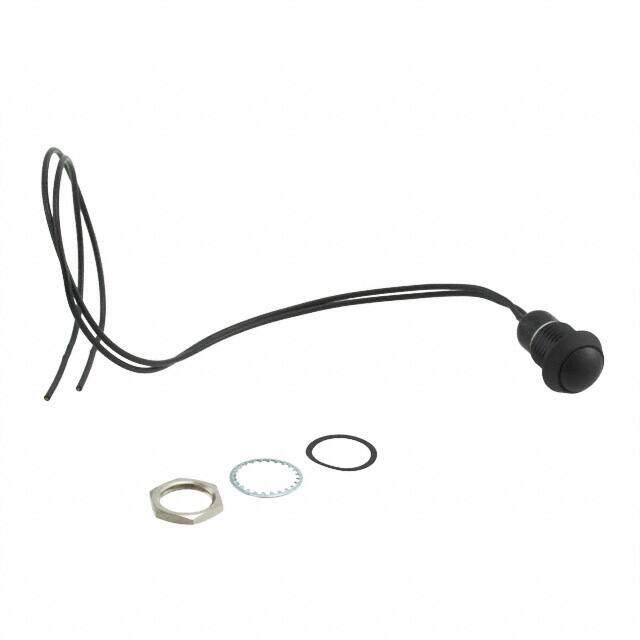

AP2D200TWBE
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPST-NO 0.125A 125V
PDF
/
Buying Options
Total Price: USD $16.24
Unit Price: USD $16.2448
≥1 USD $16.2448
≥10 USD $14.75584
≥100 USD $14.09261
≥500 USD $13.346608
≥1000 USD $12.849232
≥3000 USD $12.020272
Inventory: 1117
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Contact Plating Gold, Silver
Mount Front, Panel
Mounting Type Panel Mount, Front
Housing Material Polybutylene
Actuator Material Polybutylene, Polycarbonate
Technical
Operating Temperature -40°C~105°C
Packaging Bulk
Published 2014
Series AP
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Wire Leads
Type Standard
Voltage - Rated DC 24V
Current Rating (Amps) 125mA AC 200mA DC
Orientation Straight
Ingress Protection IP67 - Dust Tight, Waterproof
Depth 17.4mm
Current Rating 200mA
Termination Style Wire Leads
Voltage - Rated AC 125V
Actuator Type Round, Button, Domed
Circuit SPST-NO
Switch Function Off-Mom
Panel Cutout Dimensions Circular - 13.80mm Dia
Contact Resistance 50mOhm
Color - Actuator/Cap Black
Max Voltage Rating (AC) 125V
Max Current Rating 400mA
Electrical Life 1,000,000 Cycles
Throw Configuration SPST
Max Voltage Rating (DC) 50V
Mechanical Life 1,000,000 Cycles
Contact Current Rating 400mA
Illumination Type LED
Thread Size M13
Dimensions
Length 17.4mm
Actuator Length 3.54mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
Ratings Dust Tight, IP67, Waterproof
