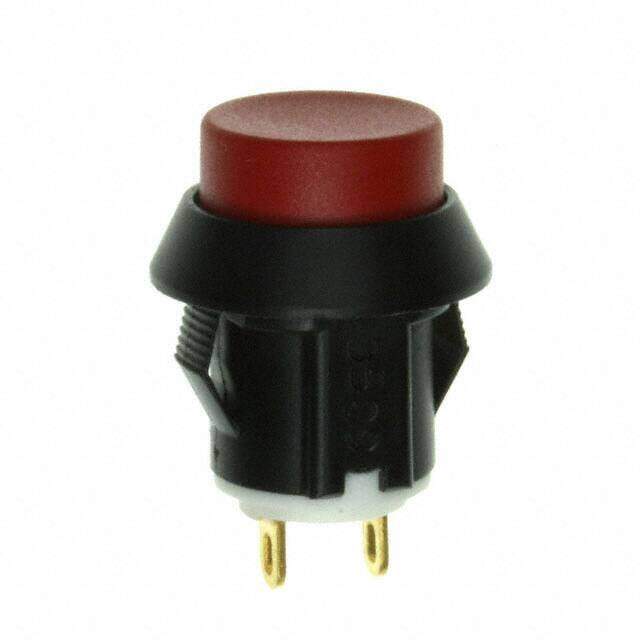

AP2C300SZBE
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPST-NO 0.125A 125V
PDF
/
Buying Options
Total Price: USD $9.53
Unit Price: USD $9.5304
≥1 USD $9.5304
≥10 USD $8.54128
≥100 USD $8.262144
Inventory: 94
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Contact Plating Gold, Silver
Mount Panel, Snap in
Mounting Type Panel Mount, Snap-In
Housing Material Polybutylene
Actuator Material Polybutylene, Polycarbonate
Technical
Operating Temperature -40°C~105°C
Packaging Tray
Published 2012
Series AP
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Type Standard
Voltage - Rated DC 24V
Current Rating (Amps) 125mA AC 200mA DC
Orientation Straight
Ingress Protection IP67 - Dust Tight, Waterproof
Depth 17.4mm
Current Rating 200mA
Termination Style Solder Lug
Voltage - Rated AC 125V
Actuator Type Round, Button
Circuit SPST-NO
Switch Function Off-Mom
Panel Cutout Dimensions Circular - 13.80mm Dia
Contact Resistance 50mOhm
Color - Actuator/Cap Red
Max Voltage Rating (AC) 125V
Max Current Rating 400mA
Electrical Life 1,000,000 Cycles
Throw Configuration SPST
Max Voltage Rating (DC) 50V
Mechanical Life 1,000,000 Cycles
Illumination Type LED
Dimensions
Length 17.4mm
Actuator Length 3.99mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Ratings Dust Tight, IP67, Waterproof
