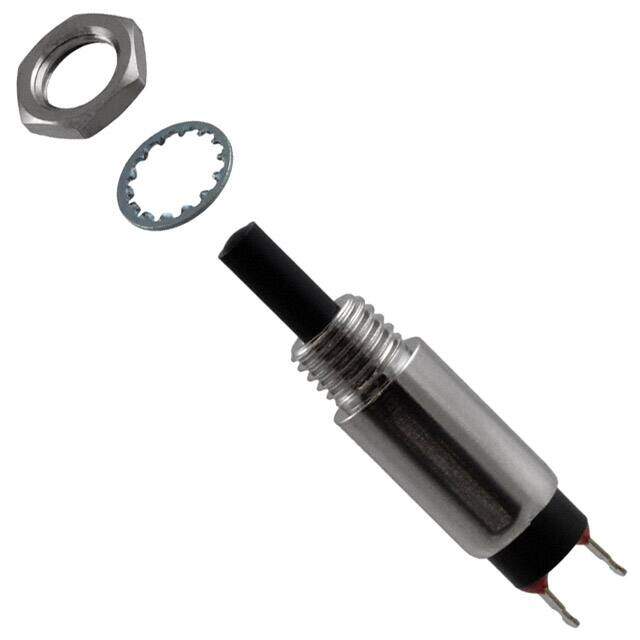

8732S1HZBE
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPST-NO 0.4VA 20V
PDF
/
Buying Options
Total Price: USD $66003
Unit Price: USD $9.429
≥7000 USD $9.429
Inventory: 21000
Minimum: 7000
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Actuator Length 9.91mm
Length 9.53mm
Diameter 4.06mm
Technical
Illumination Type Illuminated
Max Voltage Rating (DC) 20V
Throw Configuration SPST
Number of Poles 1
Electrical Life 100,000 Cycles
Max Voltage Rating (AC) 20V
Color - Actuator/Cap Black
Insulation Resistance 3Ohm
Panel Cutout Dimensions Circular - 8.08mm Dia
Switch Function Off-Mom
Circuit SPST-NO
Actuator Type Round, Plunger
Voltage - Rated AC 20V
Termination Style Solder Lug
Depth 9.53mm
Orientation Straight
Current Rating (Amps) 0.4VA AC/DC
Voltage - Rated DC 20V
Power Rating 400mW
Number of Positions 2
Type Standard
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Overtravel
Series 8700
Published 2010
Packaging Tray
Operating Temperature -30°C~65°C
Physical
Actuator Material Polyester
Mounting Type Panel Mount, Rear
Mount Panel
Contact Material Gold
Supply Chain
Factory Lead Time 14 Weeks
